LoRa-GPS-Tracker

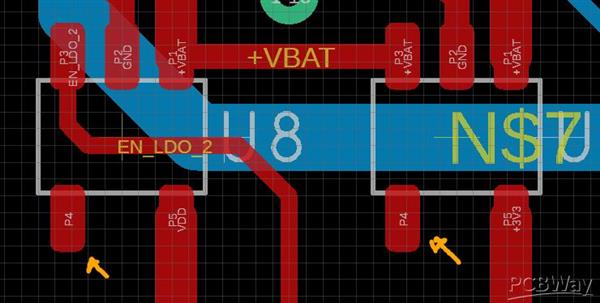

This LORA-GPS-Tracker was designed to just test three modules, which I haven't worked with yet: the RFM95 LORA module, the ESP32-S2-Mini module and the ATGM336h GPS module. All combined this device can be used as a GPS-Tracker for LORA based systems. Additionally to the modules, the board includes a 0.96" OLED display, two user buttons, a user RGB LED, a LiPo battery charger with a 16340 cell holder, and a dual LDO setup, which is very handy when it comes to deep sleeping.
For more you can visit this repo.
Jul 04,2022
8,024 views
LoRa-GPS-Tracker
A device which combines an ESP32, a GPS- and a LoRa-module. Though this can be used as a LoRa-GPS-Tracker.
