Bluetooth Joystick Controller

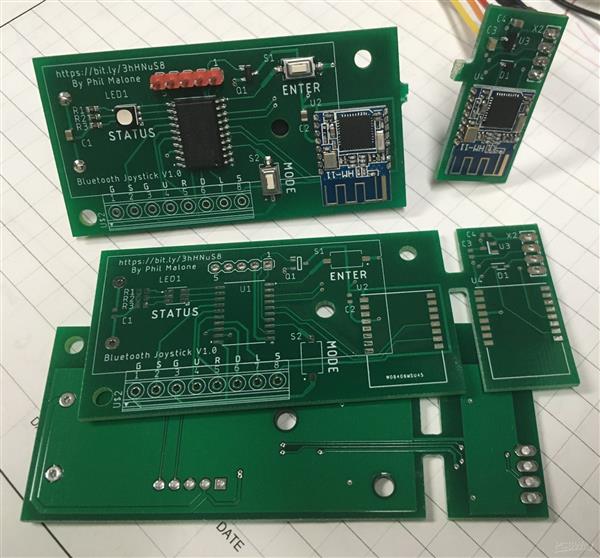

This is a 2-part bluetooth interface for a Hoverboard Remote Control. The PCB has 2 H-11 Bluetooth modules that are both connected to a PIC micro. The PIC binds them and then the two pieces get snapped apart. The boards were delivered to USA in a stunning 7 days from time of order. FANTASTIC service. Also ordered a stainless steel Stencil, which made assembling the prototype a breeze. Onto verstion 2, then into production..



Aug 08,2020
