LocoNet I/O Arduino Nano Board

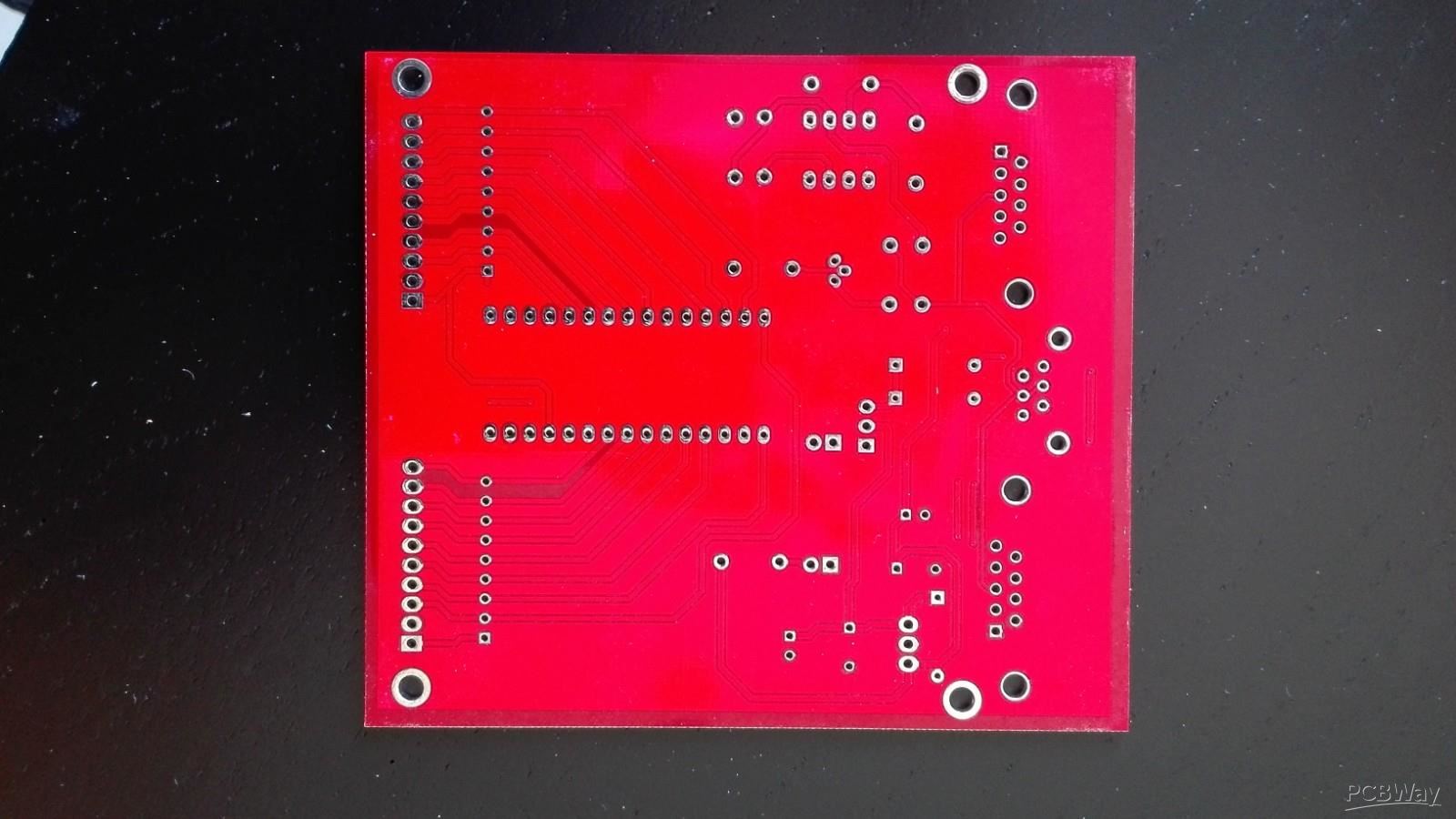

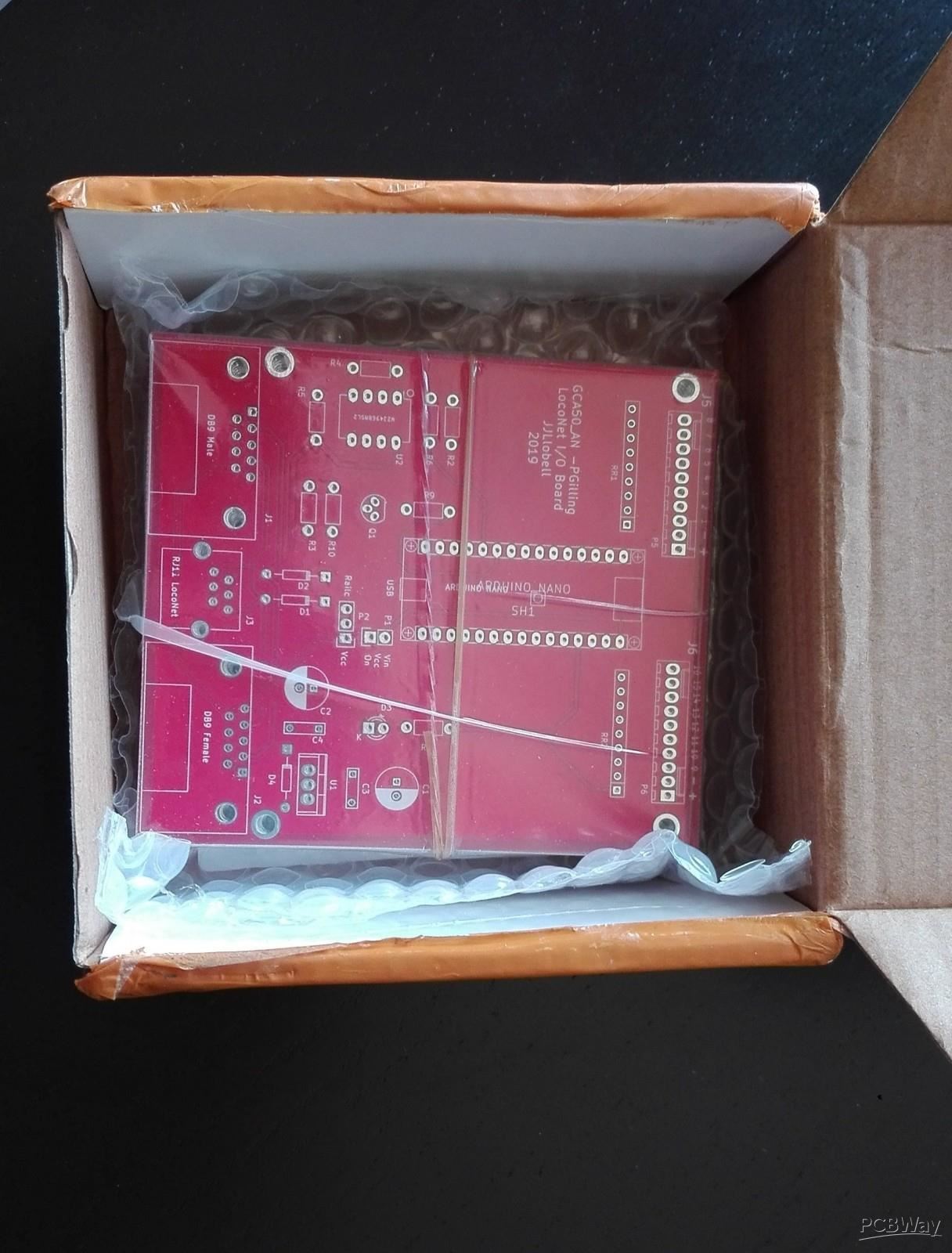

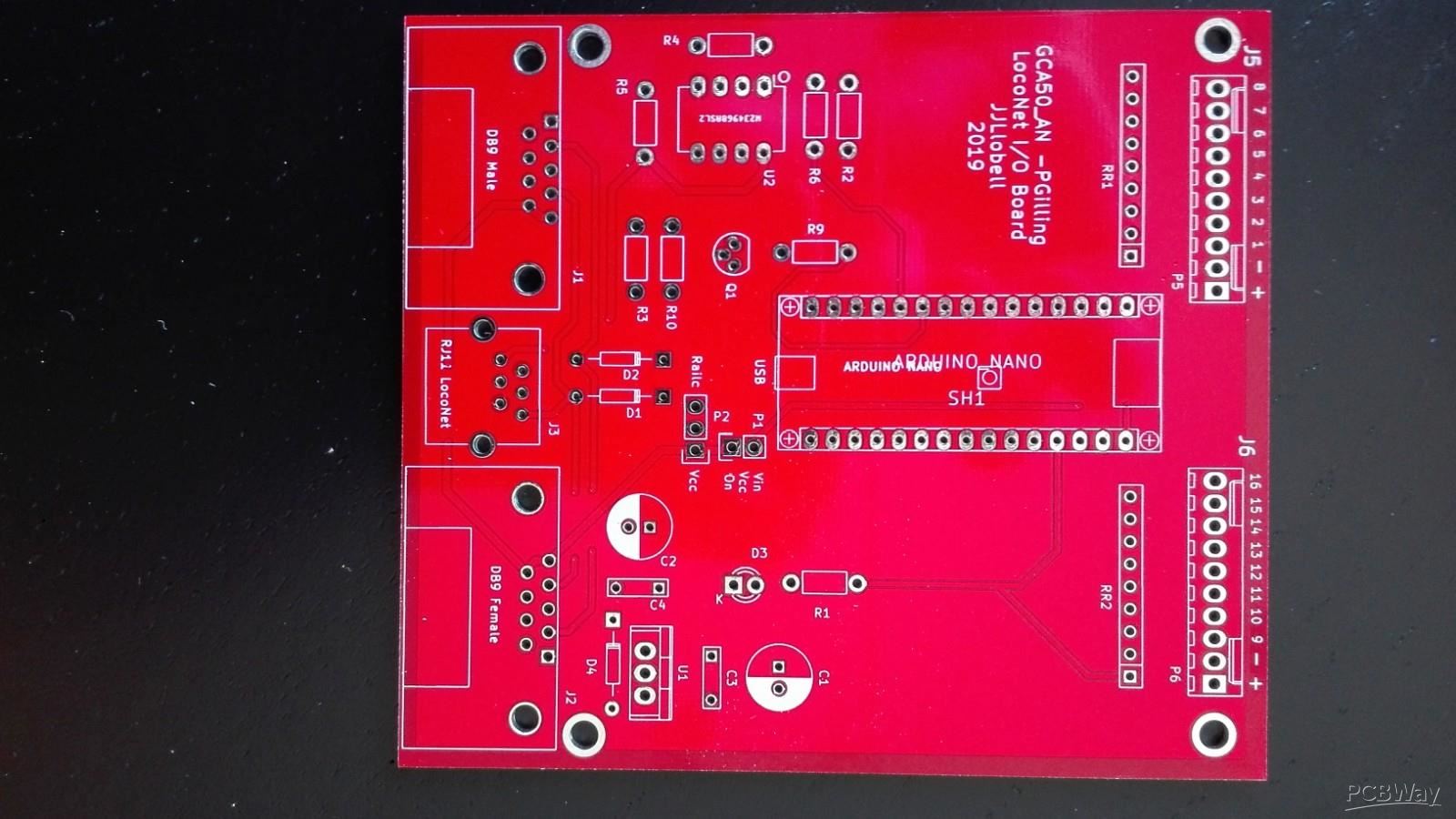

This is a board for use the LocoNet Bus for railroad models, it control inputs and outputs for sensor, lights, turnots,crossings, with that board it is too very easy. The power supply is through the DB9 connector male-female, and also with the RJ11 standart LocoNet connector. The board is perfectly finished, This serves for a simple assembly of componets.Thanks a lot!! fr yor perfect work.





Jun 19,2019
991 viewsReport item
