Making Friends with Grey Wolf-chan

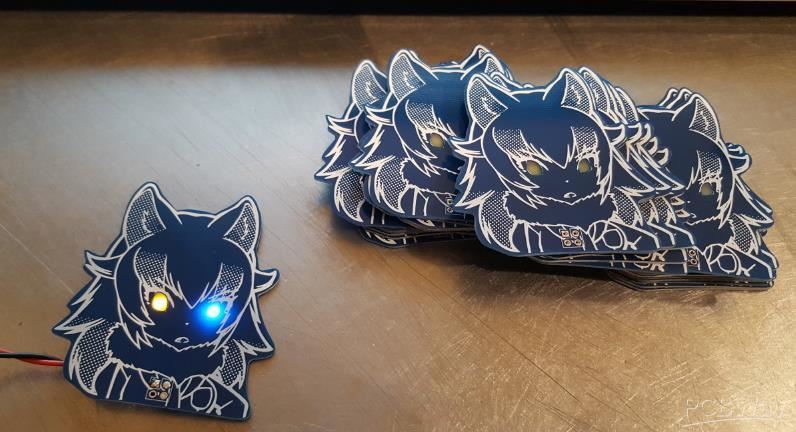

This is the first batch I've done with a really complex outline and mask cutouts, and they came out wonderfully. Screen printing on this batch is also excellent, with the halftone rendered very well.
