RPi0 Multi-purpose Hat

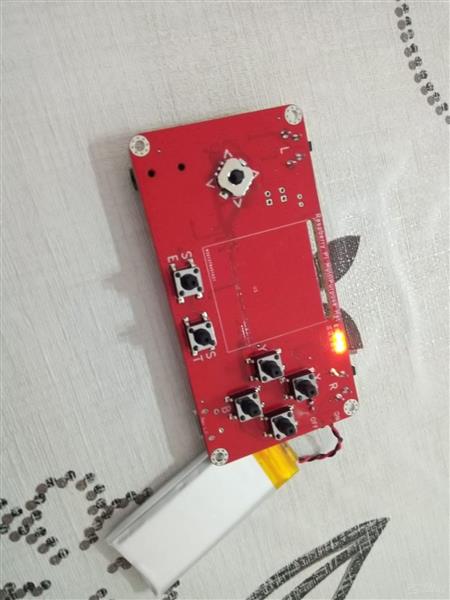

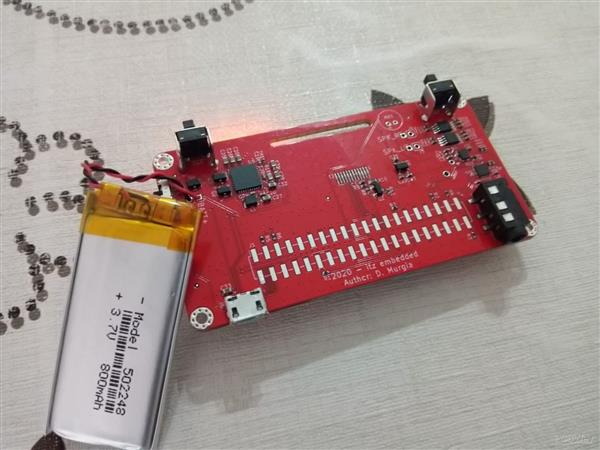

Batch of 5 pieces of the first prototype of a multi-purpose hat for raspberry pi zero. Quality of the assembled PCBs is excellent, I had to solder the screen on my own and the pads are solid and sticky. Unfortunately I've found some issues on the audio part, it will need a redesign.




Apr 04,2020
