    Product Description

    Universal e-Paper Raw Panel Driver HAT（SPI interface）

    Overview

    This is a universal driver board for e-Paper raw panels, can be used to drive various SPI interface e-Paper from Waveshare.


    Features

    • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
    • SPI interface, for connecting with other controller boards like Raspberry/Arduino/Nucleo, etc.
    • Onboard voltage translator, compatible with 3.3V/5V MCUs
    • Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)


    Specifications

    • Operating voltage: 3.3V~5V
    • Interface: 3-wire SPI, 4-wire SPI
    • Outline dimension: 65mm × 30.2mm
    • Mounting hole size: 3.0mm


    Interface

    • VCC: 3.3V~5V
    • GND: Ground
    • DIN: SPI MOSI pin
    • CLK: SPI SCK pin
    • CS: SPI chip selection, low active
    • DC: Data/Command selection (high for data, low for command)
    • RST: External reset, low active
    • BUSY: Busy status output


    Dimensions


    Resources & Services

    WIKI: https://www.waveshare.com/wiki/E-Paper_Driver_HAT


    Shipping list:

    Note: e-Paper and Raspberry Pi are NOT included.

    • e-Paper Driver HAT x1
    • RPi screws pack (2pcs) x1
    • GH1.25 9PIN cable ~20cm x1

    1

    2

    3

    • Comments(0)
    Upload photo
    You can only upload 5 files in total. Each file cannot exceed 2MB. Supports JPG, JPEG, GIF, PNG, BMP
    0 / 10000

      You might like

      • -20%
        TMA-2 Discovery

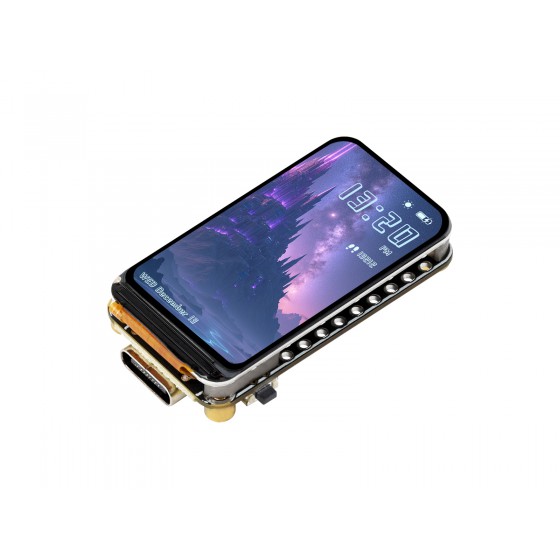

        ESP32-C6 1.47inch Display Development Board, 172×320, 262K Color, 160MHz Running Frequency Single-core Processor, Supports WiFi 6 & Bluetooth, ESP32 With Display
