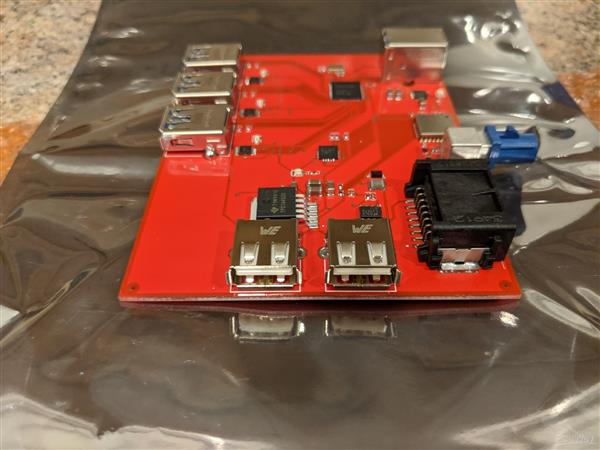

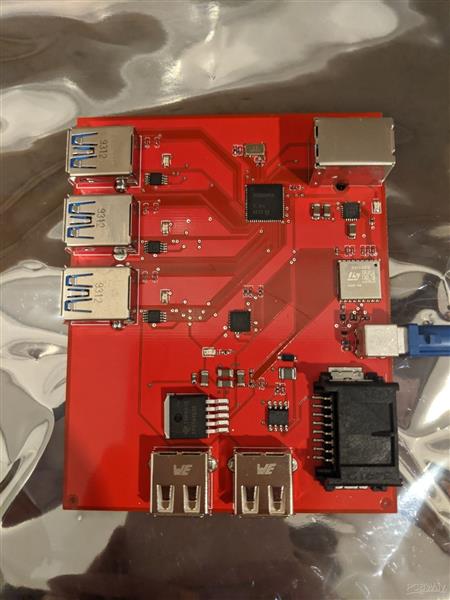

Car Head Unit v1

This was my first attempt at Circuit Board design and I put my trust in PCBWAY and was absolutely delighted with the service, speed, and quality of the boards produced by PCBWAY. My design was a little off and I burnt out the circuit by trying to put too many amps through too small a trace. I was kept informed at every step of the process and the representative I've been assigned couldn't have done more for me. An absolute pleasure to deal with and will be using again shortly once I've rectified the faults.





Mar 03,2020
1,144 viewsReport item
