Single phase power monitor board using MCP39F511

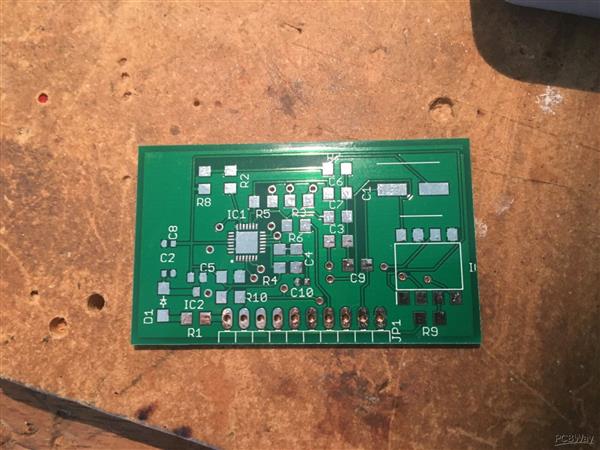

This is a plug in board to interface the MCP39F511 single phase power monitor chip to the main processor board. Board came out nice. Looks great and all connections look to be well formed.


Jan 03,2020
