W424542ASG3

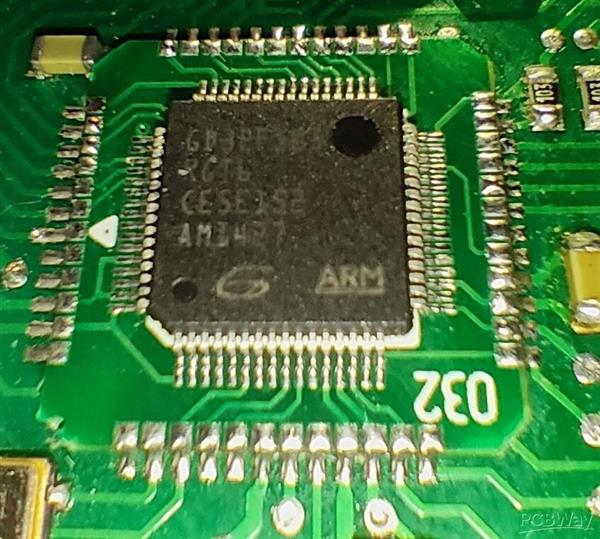

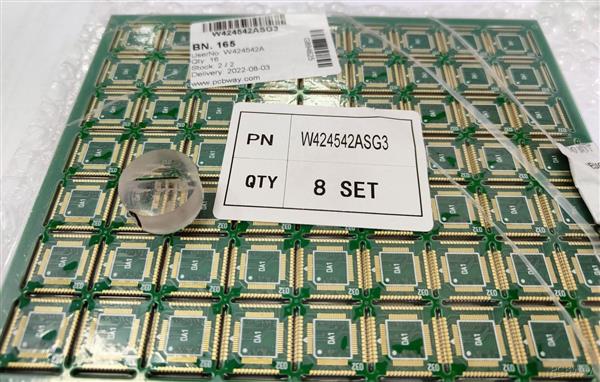

I had a task to make boards with metallized half-holes with a 1mm pitch. 4 Russian PCB manufacturers and 3 international ones refused to fulfill the order. PCB Way agreed. And, after a short agreement with the engineers, he completed the order. The quality is excellent. The contour milling with half-holes is very precise, without protrusions and burrs of copper.





Sep 22,2022
1,147 viewsReport item
