joystick pcb

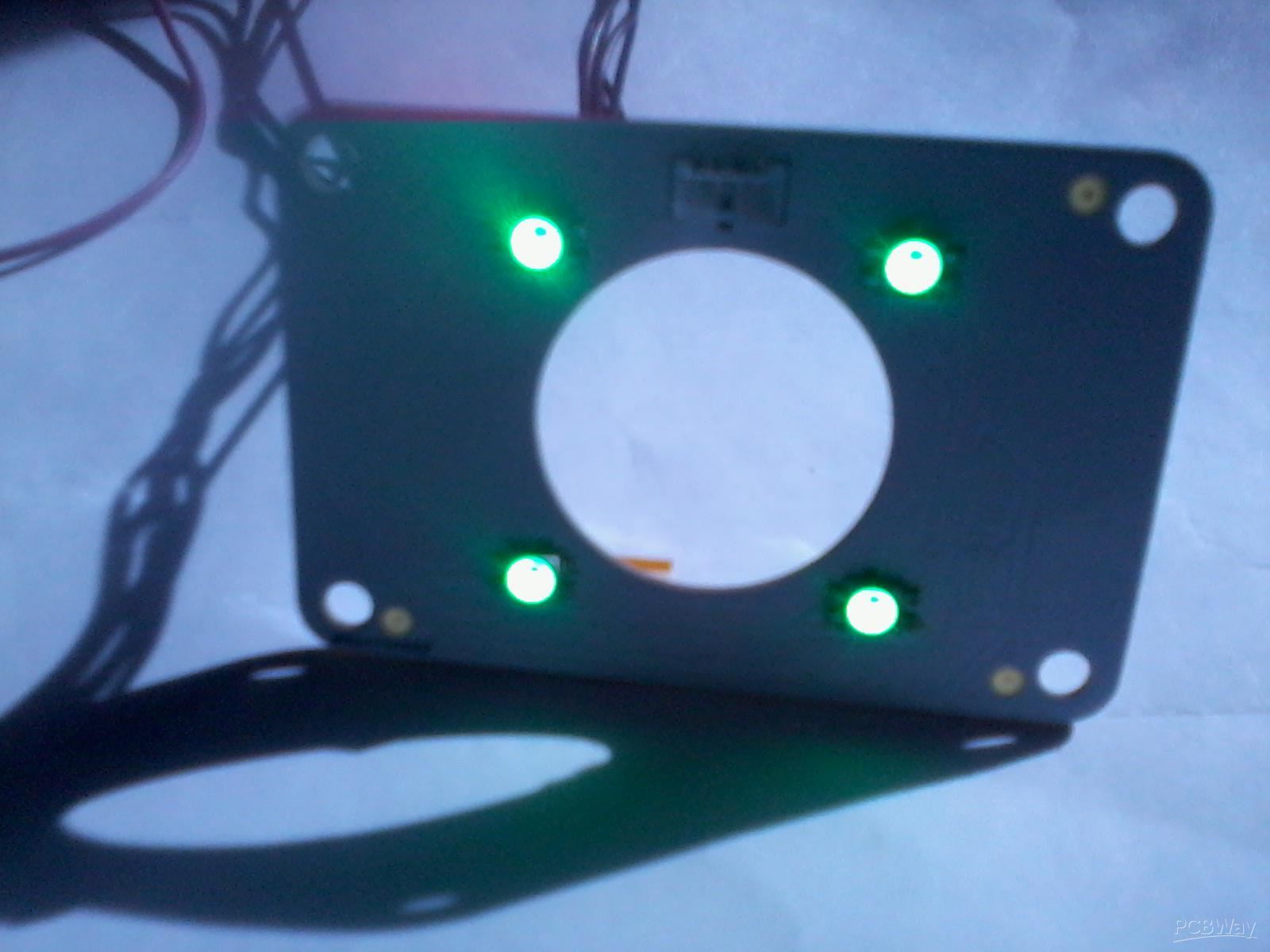

PCB with stm32f0 mcu for a joystick with serial output and simple neopixel display. Uses a light sensor for automatic brightness control when moving from indoors to outside. The order was handled by Leanne who was very helpful and patient throughout. PCBS were delivered very quickly and were assembled by hand without issue. Very happy with the small run. Very happy with PCBWay.



Jun 19,2019
