    Product Description

    296x128, 2.9inch E-Ink raw display panel

    2.9″ E-Paper

    Low Power, Wide Viewing Angle, Paper-Like Effect Without Electricity

    Ideal for price tags, shelf labels, industrial instruments...


    Features At A Glance

    • No backlight, keeps displaying last content for a long time even when power down
    • Ultra low power consumption, basically power is only required for refreshing

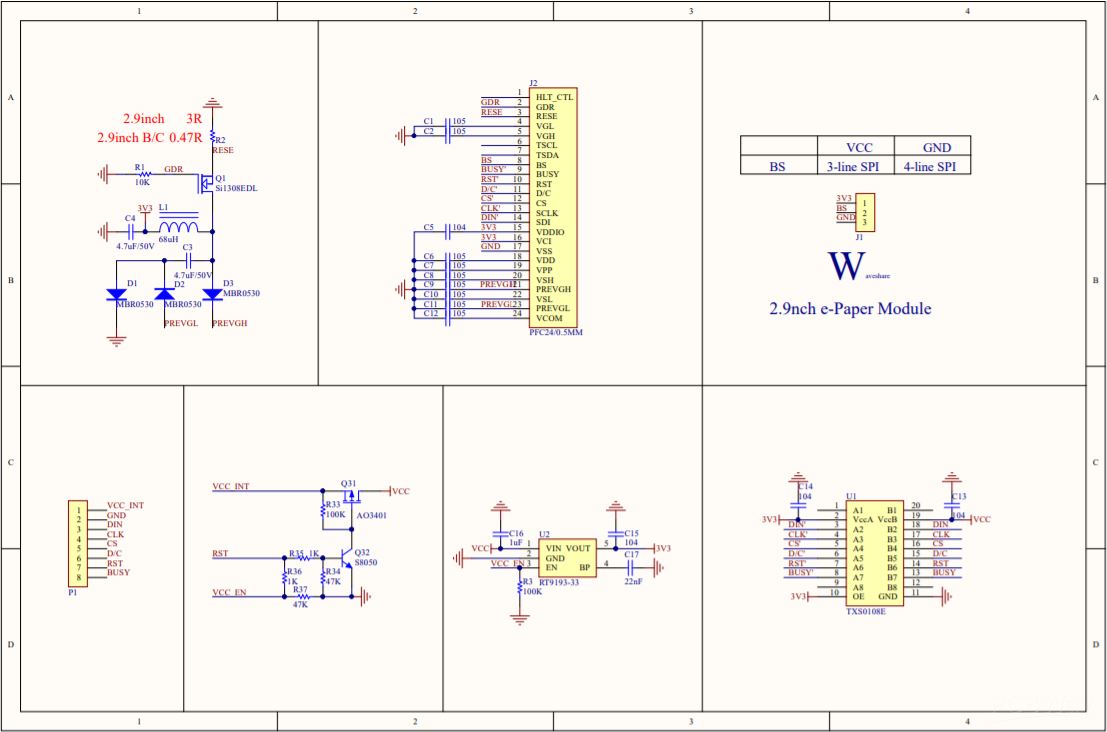

    • Comes with online development resources and manual (driver board schematic, examples for Raspberry Pi/Jetson Nano/Arduino/STM32)



    Advantages Of EINK

    E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.

    E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.


    Application Examples

    Suitable For Price Tags, Asset/Equipment Tags, Shelf Labels, Conference Name Tags...


    Product Show


    Outline Dimensions


    Resources & Services

    WIKI: https://www.waveshare.com/wiki/2.9inch_e-Paper_Module


    ?
