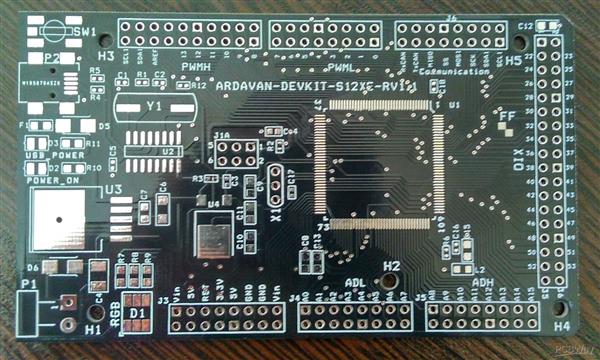

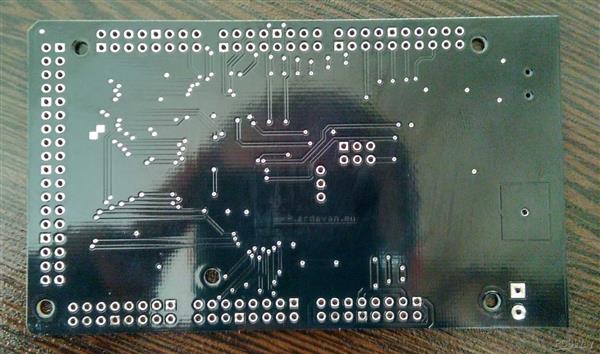

ARDAVAN-DEVKIT-S12XE

This is an Arduino Mega compatible development board using NXP MC9S12XE microcontroller. It has Higher pin count and better performance. The quality is good and I will continue to work with PCBWAY. The cutting edges, tracks, solder mask, top and bottom markings are excellent. In my Opinion, PCBWAY is a great company helping students, engineers and scientists, make their dreams happen. Thank you very much



Dec 12,2019
