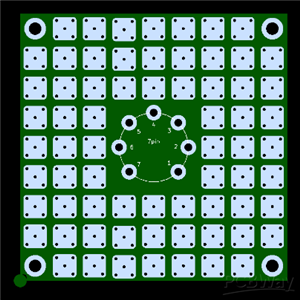

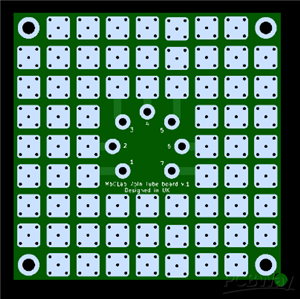

7 Pin B7G Socket Development Board
2 Layers PCB 68.68 x 68.68 mm FR-4, 1.6 mm, 1, HASL with lead, Green Solder Mask, White silkscreen

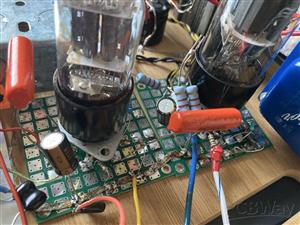

Specially designed board to speed up development and testing tube amplifiers and preamplifiers. This one is for 7 Pin B7G socket.
12
0
0
Published: Nov 25,2024
PCBWay Donate 10% cost To Author
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Under the
Attribution-GPL
License.
