CANSAN functions

Universal tool for working with CAN-bus

Application

Emulation of missing modules.

Activation of car radios, seats, air conditioners, electric power steering, etc. - without a car.

Analysis of CAN-bus data using the programs CANBOMBER, CANHACKER.

Automatic removal of mask errors.

1 built-in bomber ID and BYTE

2 one dynamic sender

3 one static sender

4 IF to SEND - checker for auto-deleting errors

5 full-fledged canhacker (CANHACKER) in USB or Bluetooth mode

6 Built-in recorder for CAN recording and playback

Saving player file editing and loading.

Now you can share files not only!

7 Changing SSID and PASSWORD

8 Setting the operating timer for rental

9 Convenient mobile version of the embedded website

10 Power supply 5 / 12V

11 turn off Wifi to reduce consumption and stealth mode

12 modes 11 bit or 29 bit

13 CAN Speeds:

5Kbps 10Kbps 20Kbps 33.3Kbps 40Kbps 50Kbps 83.3Kbps 100Kbps 125Kbps 200Kbps 250Kbps 500Kbps 1000Kbps

14 Automatic detection of the speed and bitness of the CAN network

15 Setting the speed through the program

16 LIN protocol support test

17 Adaptive protocol

17 Adaptive protocol works with many CANHACKER programs

18 CAN player for 250 packets added display of recorded data

//////////////////////////////////////////////// //////////////////////////

CAN speed can be set in the web interface or through the program interface. (remembers the last one)

11/29 bit is set in the web interface.

Speed ??of work via USB with programs 115200

WiFi jumper disables Wifi

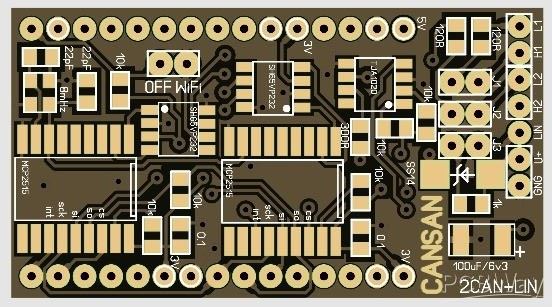

Jumper J1 on the mcp2515 module we put the code, we connect it to the peripheral devices and remove it when we connect it to the car or ECU!

The driver must be changed to SH65VP230 or SH65VP232!

The board is powered from USB or if an external DC-DC 12V is installed (afraid of polarity reversal)!

We must connect the earth first and foremost!

The license is endless and is valid for the entire CANSAN CAN2SAN CANBridgeIP family, you can change it here and there without formatting the flash!

To learn how to work with other programs working under the CanHacker (lawicel) protocol, just install ID123 DLS8 byte 11 22 33 44 55 66 77 88 and connect to the program 1 time
