Garage door ESP

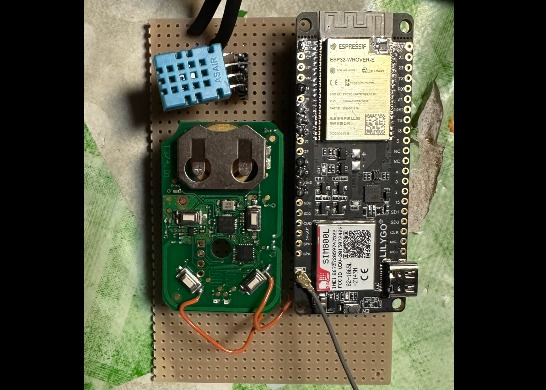

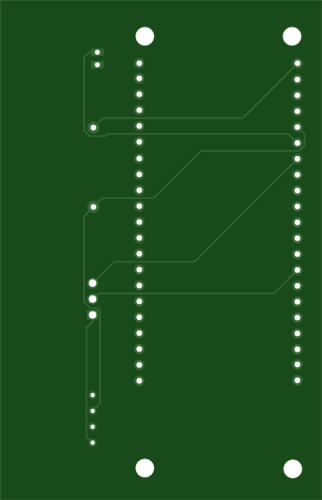

This PCB will help me with my first real Arduino project. It will be placed in my garage and power supplied via USB-C. It consists in three main parts:
The RF remote that closes and opens the garage door
The DHT11 that gives the garage temperature
A mercury switch that will tell if the garage door is open or closed
