MIDI Breakout Board

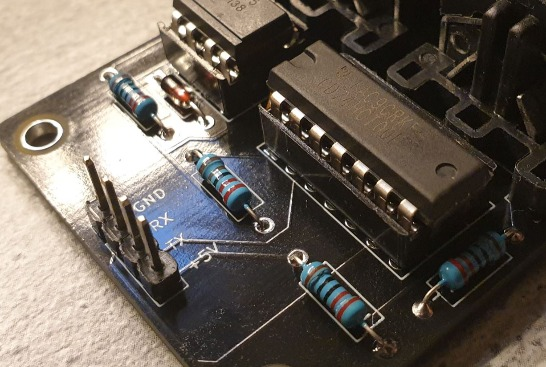

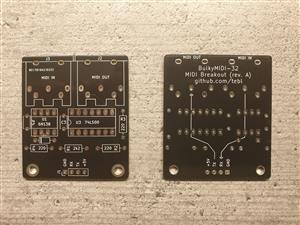

When I first started out with building the BulkyMIDI-32 (running mt32-pi), I had no idea what I was getting into and of all the modules I started building - this is the one I wish I'd started with. It was designed for use with Arduino Uno, Nano, Every and Pro Micro in their 5v variants - mostly because these are what I'm most familiar with. What it gives you is the circuits for adding 5-pin MIDI IN and OUT to your board using four cables.
Code
https://github.com/tebl/BulkyMIDI-32/tree/main/adapters/MIDI%20Breakout%20Board
Schematic and Layout
https://github.com/tebl/BulkyMIDI-32/tree/main/documentation/schematic/adapters
Aug 22,2022
848 views
MIDI Breakout Board
Want to play around with MIDI on an Arduino Uno, Nano, Every or Pro Micro? Adding a breakout board makes it easier to prototype new stuff.
