Ohio Scientific 610 Replica
Several years ago i found a superboard II and 610 kit unbuilt with all the important parts intact,

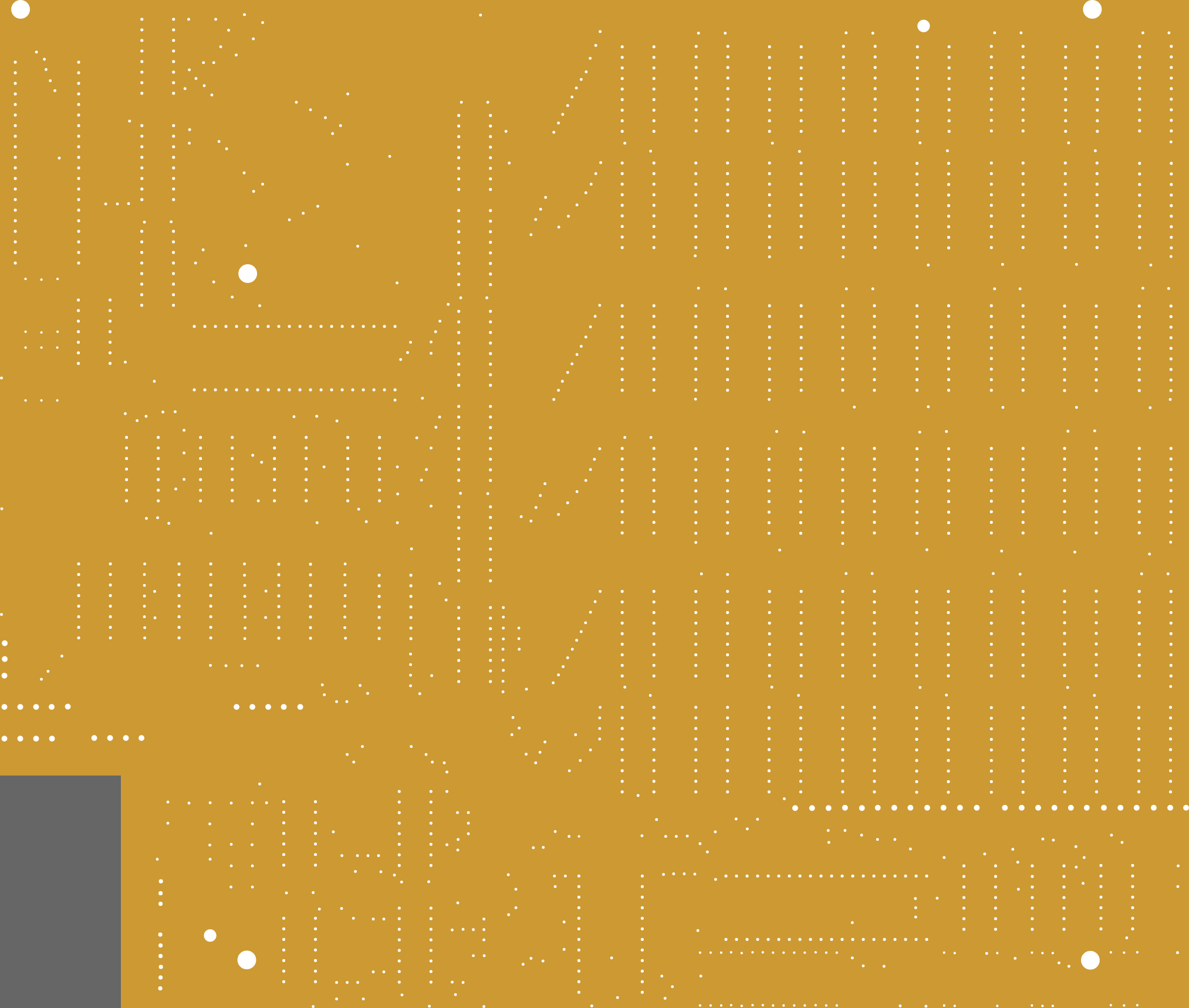

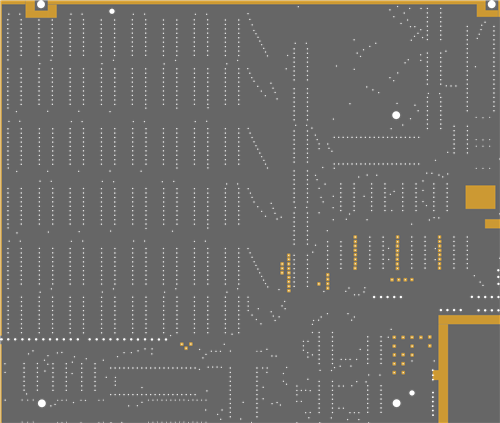

I was thinking of building the kit i have but decided to leave it alone and make a replica of the 610 and superboard II , here is the replica 610 board
Jul 22,2024
113 views
Ohio Scientific 610 Replica
2 Layers PCB 255 x 300 mm , 1.6 mm, 1, HASL with lead, Green Solder Mask, None silkscreen
