PPP EL84 tube amplifier
Technische Daten der 30W-PPP-Endstufe
Frequenzgang 10 Hz ... 70 kHz (± 3dB)
Leistung (4 Ohm) 30 W (Sinus), 40 W Musik)
Klirrfaktor 0.01% (500 Hz ... 5kHz, 1 W bei 4 Ohm
Ger?uschspannungsabstand 101 dB (A) (1.5V bei 4 Ohm)
D?mpfungsfaktor ca 30
Eingangsimpedanz 100 kOhm
Ausgangsimpedanz 2/4/8/15 Ohm
R?hren2 x ECC 83, 4 x EL 84

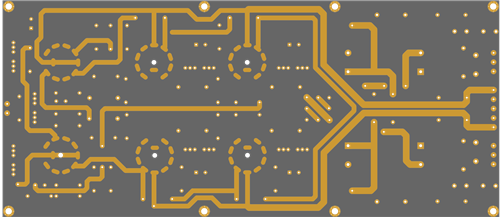

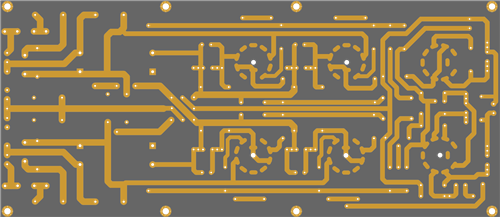

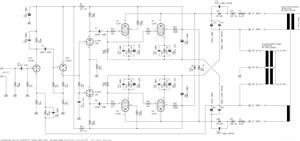

Schematic and Layout
