The Blinking Light Unit

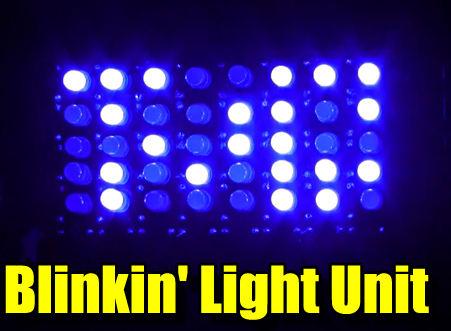

he "Super Computer", inspired by BigClive.com, moves from a proto board to it's first PCB. In this video I used a PCB designed by me and made by PCBWay, self-blinking Blue LEDS (https://www.ebay.com/itm/100pcs-5mm-Diffused-Self-Blue-Blue-Light-Blink-Blinking-Flash-LED-Diodes-USA/121748729065?ssPageName=STRK%3AMEBIDX%3AIT&_trksid=p2057872.m2749.l2649) and 100Ohm 1/4 resistors (https://www.ebay.com/itm/100pcs-100-Ohm-Carbon-Film-Resistor-1-4W-25W-5/122959797557?ssPageName=STRK%3AMEBIDX%3AIT&_trksid=p2057872.m2749.l2649)
The Blinking Light Unit
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
