Description
The Padapter

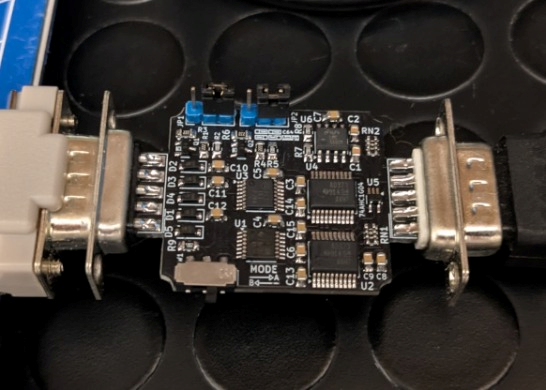

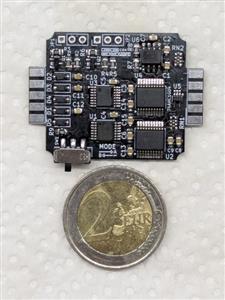

This board converts a SEGA MegaDrive/Genesis 3-button gamepad for C64 (and similar)/Amiga use.
All buttons on the gamepad are demultiplexed and usable by the computer, the adapter also provides two switchable mappings to help with games that used the joystick up direction for jumping.
It uses no MCU, and, as such, introduces no delay!
Schematic and Layout
https://github.com/hkzlab/Padapter
Mar 25,2025
36 views
end-flag
The Padapter
Genesis/MegaDrive gamepad to C64/Amiga adapter, with 3 button support and switchable button map, all built upon simple logic, no MCUs!
