mdt_pcb-enclosure-front (3.2" DISPLAY)

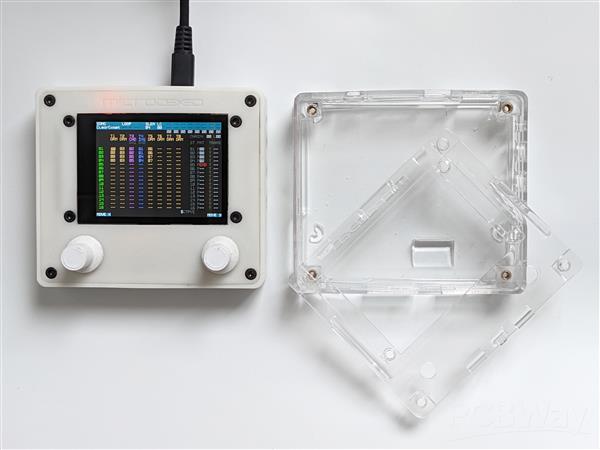

This is the front plate for the pcb-based enclosure for Microdexed Touch with 3.2" Display.
Microdexed Homepage on pcbway:
https://www.pcbway.com/project/shareproject/MicroDexed_Capacitive_Touch_64970fee.html
Project Homepage:
https://codeberg.org/positionhigh/MicroDexed-touch
The above front/backplates are a (more simple) alternative solution to the SLA printed, full enclosure:
You find the SLA printed Enclosure on the bottom of the main page: https://www.pcbway.com/project/shareproject/MicroDexed_Capacitive_Touch_64970fee.html
Jul 13,2024
301 views
mdt_pcb-enclosure-front (3.2" DISPLAY)

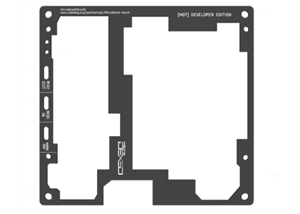

1 Layers PCB 88.6 x 95 mm FR-4, 1.6 mm, 0, HASL with lead, White Solder Mask, Black silkscreen
