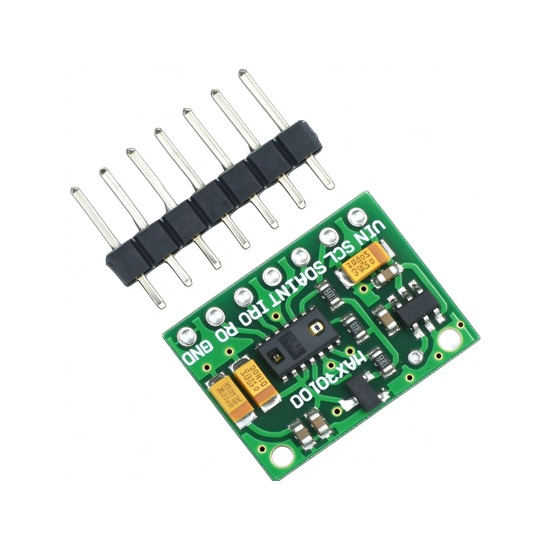

MAX30100 Heart-Rate Oximeter Pulse Sensor Pulsesensor Module
Description:
Heart Rate module carries Maxim's MAX30100 integrated pulse oximetry and heart-rate sensor.
It's an optical sensor that derives its readings from emitting two wavelengths of light from two LEDs - a red and an infrared one - then measuring the absorbance of pulsing blood through a photodetector.
This particular LED color combination is optimized for reading the data through the tip of one's finger.
The signal is processed by a low-noise analog signal processing unit and communicated to the target MCU through the mikroBUS I2C interface. Developers of end-user applications should note that the readings can be negatively impacted by excess motion and changes in temperature. Also, too much pressure can constrict capillary blood flow and therefore diminish the reliability of the data.
Optical sensor:
IR and red LED combined with photodetector
Measures absorbance of pulsing blood

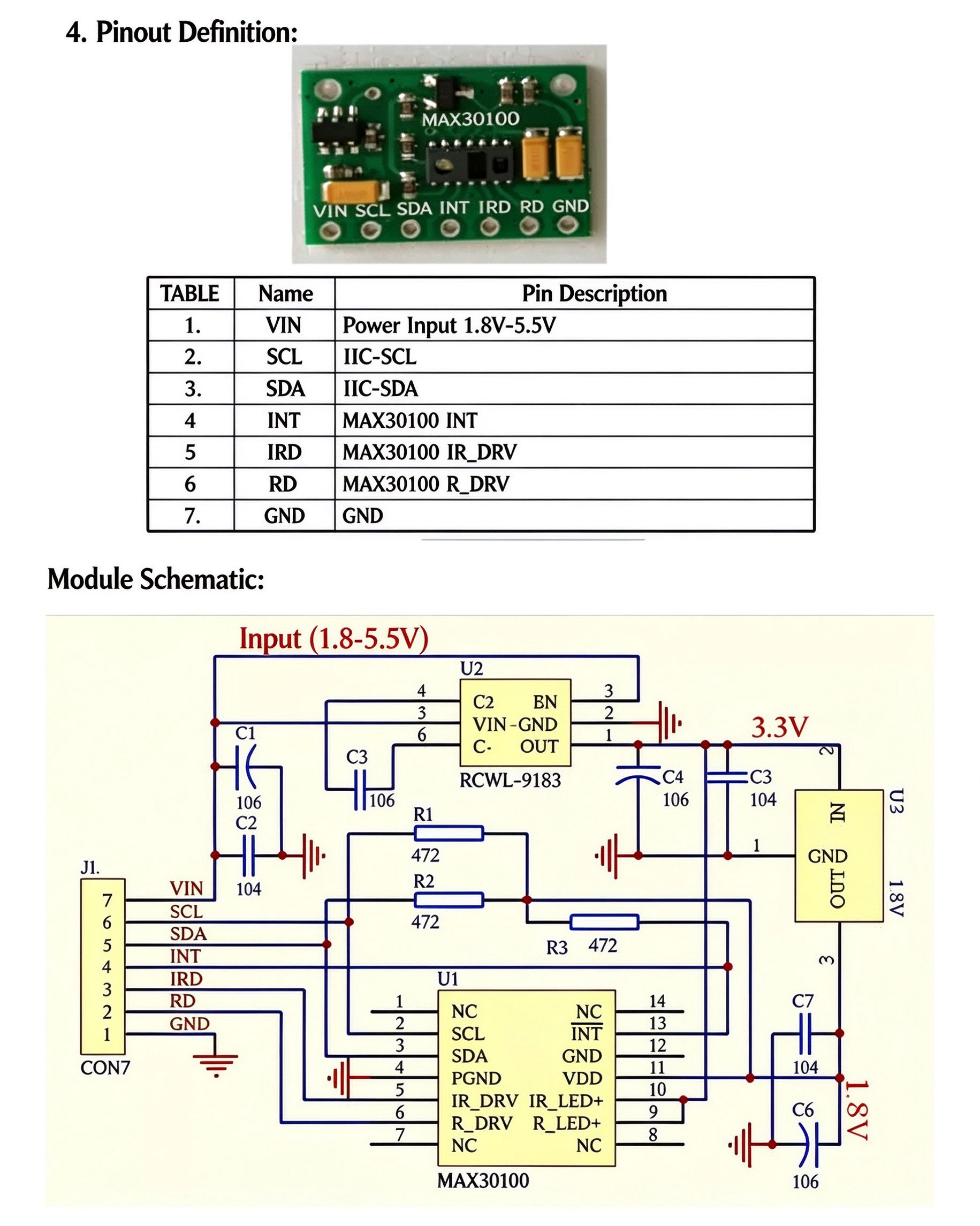

I2C interface plus INT pin
3.3V power supply
Key Benefits:
Motion artefact resilience
Ambient light cancellation
Ready-to-use examples save development time
Applications
Developing algorithms for pulse oximetry and heart rate readings through the tip of a finger
Product size: about 1.90*1.40cm/0.75"*0.55"
