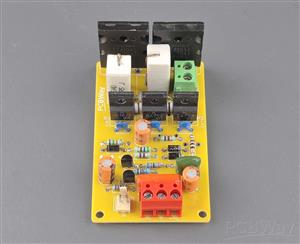

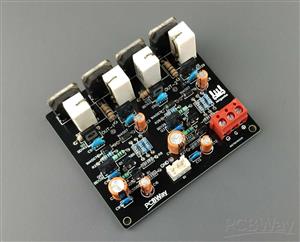

100W Bridge Amplifier.
Components
1. 1×C4793 Transistor.
2. 1×A1837 Transistor.
3. 1×2SC5200 Transistor.
4. 1×2SA1943 Transistor.
5. 4×3.3KΩ resistor 1/4W.
6. 3×330Ω resistor 1/4W.
7. 1×10Ω resistor 1/4W.
8. 2×150Ω resistor 1/4W.
9. 5×10KΩ resistor 1/4W.
10. 2×IN4744 (15V 1W) Zener Diode.
11. 1×1uF capacitor 50V.
12. 3×100uF capacitor 50V.
13. 3×220pF (221) capacitor 50/100V.
14. 2×0.1uF (104) capacitor 50/100V.
15. 1×0.15uF (154) capacitor 50/100V.
16. 1×2 pin XHB connector base 2.54 mm.
17. 1× TL072/ NE5532/ 4558D IC.
18. 1×2 Pin Screw Terminal.
19. 1×3 Pin Screw Terminal.
Hello guys, in this post I make a 100 Watts mono amplifier. This is a class AB mono amplifier. Which can deliver up to 130 Watts RMS output at 4Ω ±30V, Test frequency 1khz. And 70 Watts RMS output at 8Ω ±35V, Test frequency 1khz. For this amplifier, I used 1 pair of 2SC5200 and 2SA1943 transistors.
Schematic and Layout
