Description
64 bit bidirectional 5v shield for mojoV3

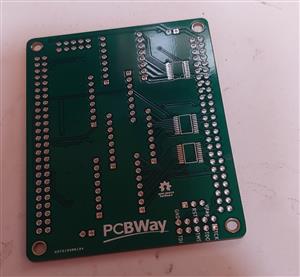

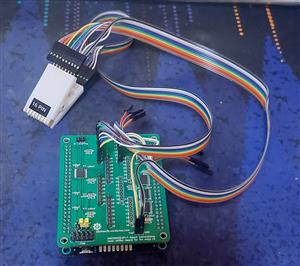

Level shifter board for the old Mojo V3 fpga dev board. Uses include: in-circuit vintage chip testing, logic analyzer, vintage ASIC simulator, and more.
Full project writeup is here: https://abzman2k.wordpress.com/?p=4938
Jun 06,2023
972 views
64 bit bidirectional 5v shield for mojoV3

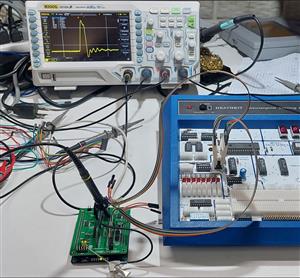

Giving a fairly powerful FPGA plenty of 5v level IO so you can use it to interface with vintage electronics and develop ASIC replicas
