741 IC Bass Booster
Introduction
In this project, we are going to design a bass booster circuit using the 741 IC. This is a general-purpose board that is very important when you want to boost your bass while listening to your sweetest songs. It will go a long way saving you a lot of unexpected costs which comes in when you need to buy an expensive amplifier to boost your bass. You might end up buying an amplifier that might not even solve your needs. This project is a good one for you and your bass-boosting problem will be a forgotten issue.
IC 741 is Our Main Component in the Circuit
This IC is the basic building block for our circuit. The IC uses an exterior feedback mechanism to regulate how they function. The structure is made up of two inputs and two outputs. The inputs and outputs are inverting and noninverting. They serve the main purpose of strengthening the AC and DC signals flowing in the circuit. The other purpose is they are deployed where mathematical operations are needed.
Pin Diagram of IC 741
The diagram above shows the pin configuration of the IC 741. Pin 4 and 7 are the power supply pins where pin 7 is the positive power pin while pin 4 is the negative power pin. The IC is supplied with 5 to 18 volts using these two pins. Pin 6 is the output pin the output from this pin is determined by the feedback and the voltage amount at the input pins 4 and 7.
Pin 2 and 3 are the input pins where pin 2 is the noninverting pin while pin 3 is the inverting pin. Pin 1 and 5 form connections for feeding offsetting voltage values which is done through a potentiometer. The pins are referred to as offset null pins. Pin 8 is not connected. This is used to fill up the empty pin in the IC. The pin is not connected both externally or internally.
The IC 741 Bass Booster Circuit Components
- 10uF Polarized capacitor, small US symbol C1,C2,C6 C_0402_1005Metric
- 0.0033uF Unpolarized capacitor, small symbol C3,C4,C5 C_0402_1005Metric
- 47uF Polarized capacitor, small US symbol C7 C_0402_1005Metric
- SJ2-3592B-SMT-TR J1,J2 CUI_SJ2-3592B-SMT-TR
- Screw_Terminal_01x02 Generic screw terminal, single row, 01x02, script generated (kicad-library-utils/schlib/autogen/connector/) J3 TE_282834-2
- BC548 0.1A Ic, 30V Vce, Small Signal NPN Transistor, TO-92 Q1 TO-92_Inline
- 56k Resistor, small US symbol R1 R_0402_1005Metric
- 47k Resistor, small US symbol R2,R11 R_0402_1005Metric
- 1k Resistor, small US symbol R3 R_0402_1005Metric
- 2.2k Resistor, small US symbol R4 R_0402_1005Metric
- 10k Resistor, small US symbol R5,R6,R7,R9 R_0402_1005Metric
- 50k Resistor, small US symbol R8,R10 R_0402_1005Metric
- 100k Potentiometer RV1 Potentiometer_Bourns_3296W_Vertical LM741 Operational Amplifier, DIP-8/TO-99-8 U1 SC-70-8
The IC 741 Bass Booster Circuit Done in KiCAD
How the Circuit Works
C1 is used as a decoupling capacitor. This capacitor passes AC signals to the BC 548 transistor Q1 through resistor R3. Resistors R1 and R2 are used as voltage dividers where they bias the current going through transistor Q1. Components Q1, R1, R2, C1, R3, C2, and R4 form part of the preamplifier circuit used to boost up the input signal to level one. The boosted signal will go out of the BC548 transistor Q1 emitter then through C2 which acts as a signal coupling capacitor then to the low pass filter as in the circuit diagram. The signals are mixed at the IC 741 pin 2 and the IC amplifies the bass more before it leaves through output pin 6.
PCB Layout in KiCAD

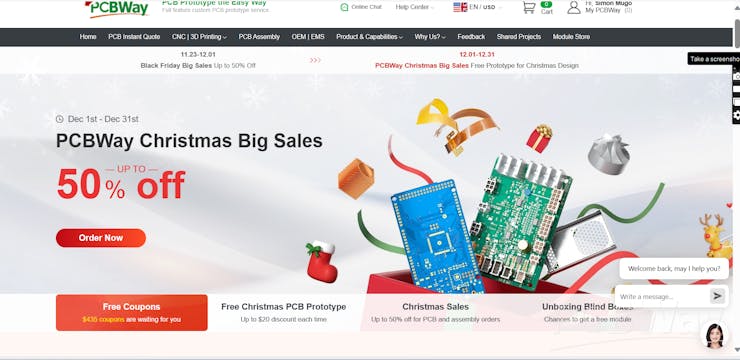

Take Your Christmas Orders For Such Boards
Are you worried about where to have such boards fabricated? Worry no more because PCBWay got you covered through their beautiful Christmas offers. Here you will get Free Coupons, a Free Christmas PCB Prototype with Up to a $20 discount each time, and Christmas Sales with Up to 50% off for PCB and assembly orders.
Rules:
1. Please add the keyword "Christmas2023" in “Other Special Request” on the instant quote page if your design is a Christmas theme design.
2. During the event, each person has three chances for the free prototype. Besides, there is also a discount of up to $20 each time.
3. The coupon is valid for ONE month, and only available for Christmas-themed orders.
4. All rights of interpretation of the event belong to PCBWay.
