Components
|
R1 - Resistor 0603, 1k |
x 1 | |
|
R2, R3 - Resistor 0603, 4k7 |
x 2 | |
|
D1, D2, D3 - LiteON LTST-C190KGKT |
x 3 | |
|
J1 - Sub-D connector, Print, Male, 25 Pin |
x 1 | |
|
J2 - Sub-D connector, Print, Female, 25 Pin |
x 1 |
Tools, APP Software Used etc.
|
KiCADKicad
|
Description

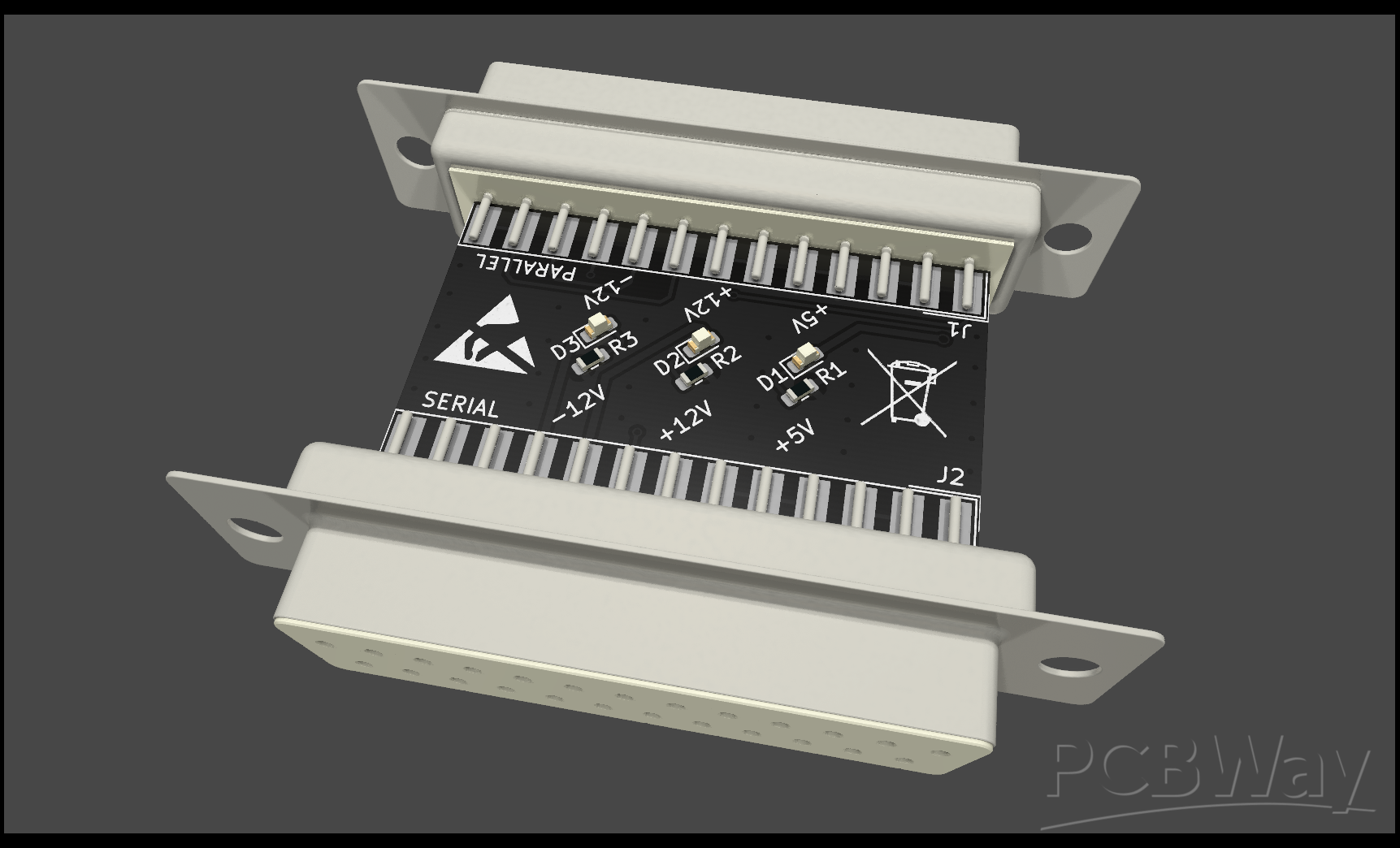

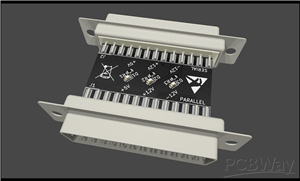

Amiga Test Kit Dongle
This is a Loopback Dongle suitable for Amiga Test Kit and/or DiagROM and can be used for both Serial and Parallel Port.
With this simple test set you can verify that your Ports are in working order. LEDs indicate that port power pins are operational.
For non-commercial use only.
