Description
180289-1_CNC
Calibration Adaptor for 2K rig from Interface, Inc.
CAD-Custom parts and enclosures
Aug 09,2024
80 views

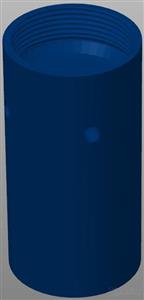

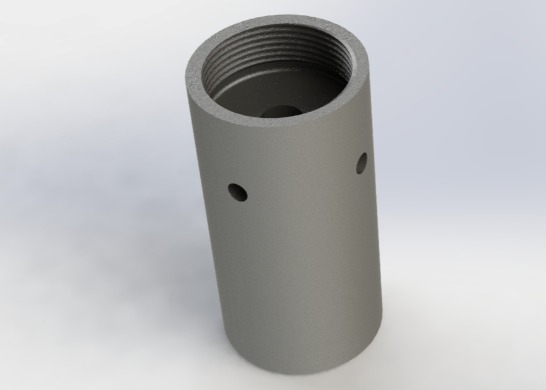

180289-1_CNC
Compression load fixture, Heat Treated D2 Tool Steel, 1.75-12 UN -3B
2" OD, 3.905" long
80
0
0
Published: Aug 09,2024
