amigamess The Shark!
ITALY • + Follow
Edit Project
Description

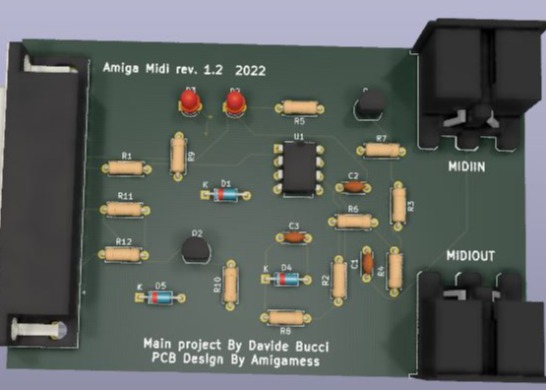

Commodore Amiga MIDI my personal REV.
Amiga MIDI my personal REV.
You can download 3D case .stl here

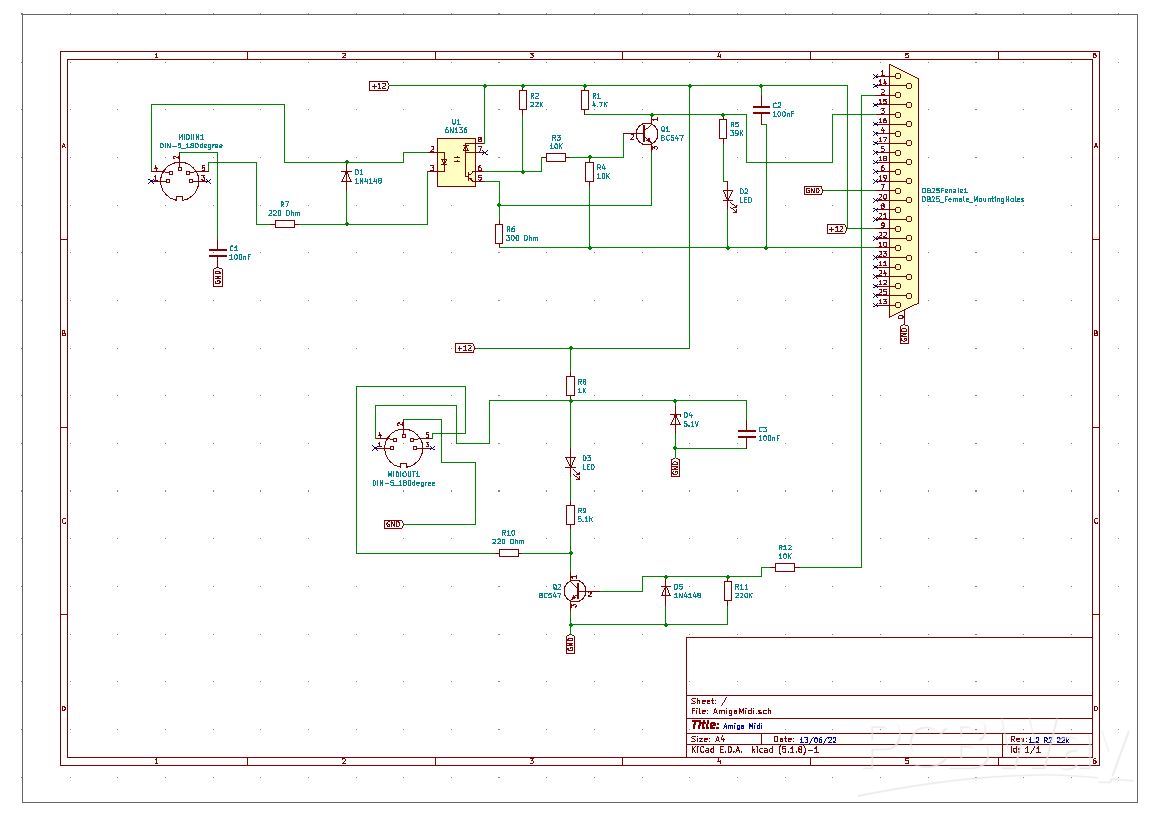

Main components and schematics.
Main project: http://davbucci.chez-alice.fr/index.php?argument=elettronica/midiint/midiint.inc
ONLY FOR PERSONAL USE
CAD-Custom parts and enclosures
Jan 01,2024
774 views
Commodore Amiga MIDI my personal REV.
