Commodore Amiga video out RGB to SCART converter
Device to send video signal from the commodore amiga RGB port to scart
BOM :
3 x 220uF capacitors (C1,C2,C3)
1 x SM 0805 1Kohm resistor (R2)
1 x SM 0805 75ohm resistor (R3)
1 x SM 0805 330ohm resistor (R1)
1 x 90° degree female db25 connector
1 x 90° degree female scart
1 x a cut Audio RCA Cable with 2 Jacks (White and Red)
Cut last pins of DB25 (13 and 25)

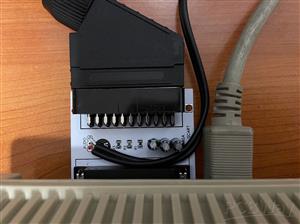

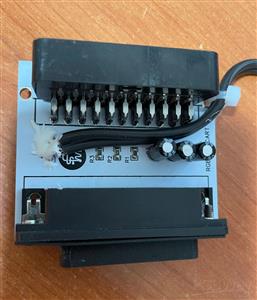

Look the pictures
WIP - Don't buy yet, waiting for the PCB
