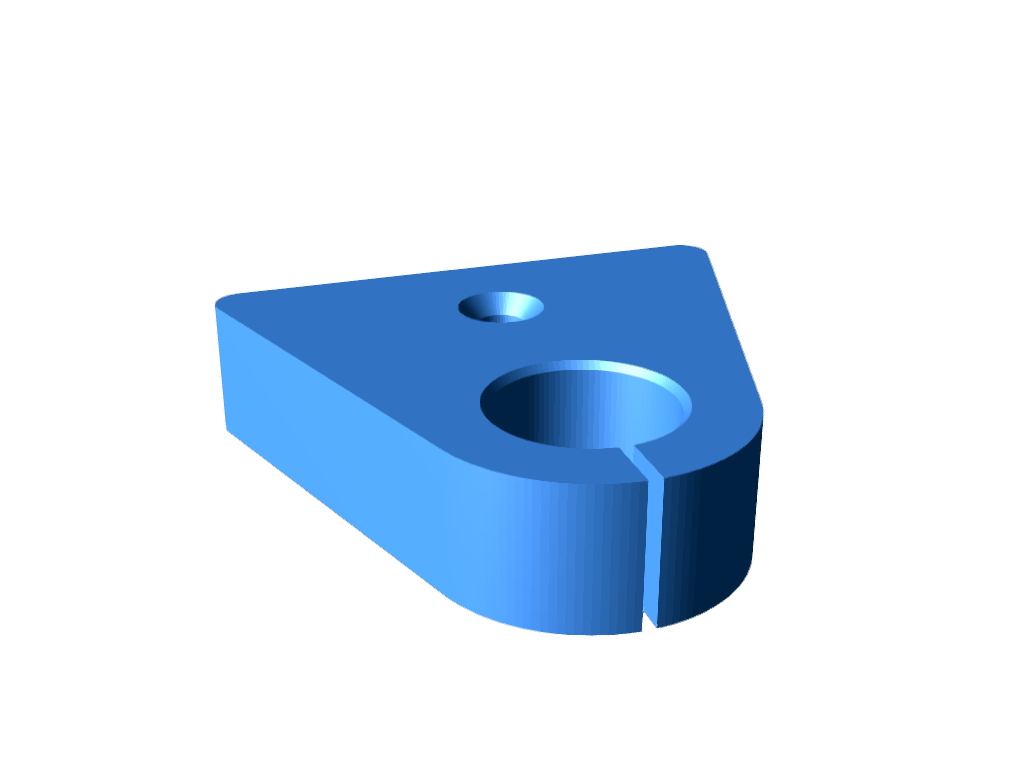

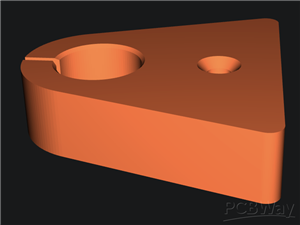

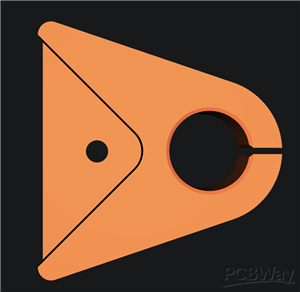

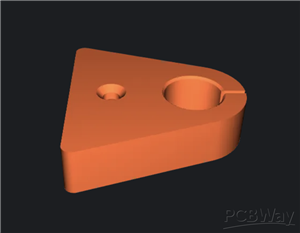

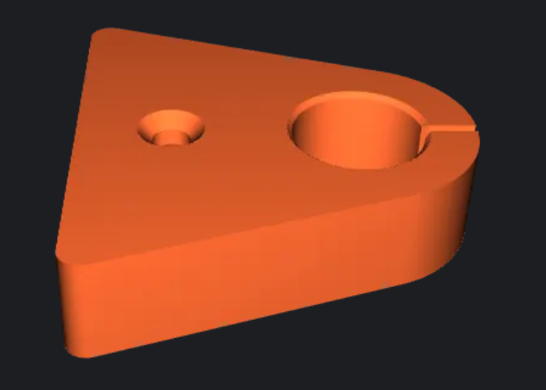

Crosshair holder

Designed to hold the standard 12mm cylindrical laser crosshair module you find on site such as Amazon or AliExpress. Requires that you replace the stock 5mm M3 Flat Head Socket Cap Screw (FHSCS) with an 8mm or 10mm one. The laser is a tight friction fit. 5V laser modules can be connected to the USB-C port on the top of the laser module. This can be mounted on the front right or left corner.

This is designed to fit the 40W version of the Falcon 2. It should fit the 20W as well however as I believe they use the same housings
