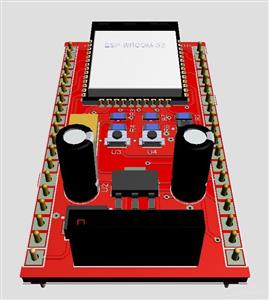

ESP32 low cost board
I developed this project so that my students could learn about electronic solder of SMD and PHT components and also introduce knowledge about microcontroller and IOT programming. Each student will weld their own plate and take it home to continue their studies and solve homework during the course.
Dec 21,2020
1,573 views
ESP32 low cost board

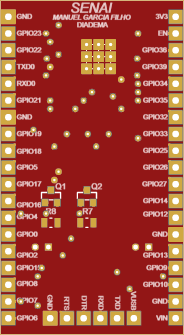

2 Layers PCB 27.9 x 50.8 mm FR-4, 1.6 mm, 1, HASL with lead, Red Solder Mask, White silkscreen
ESP32 board without USB/TTL converter.
1573
2
2
Published: Dec 21,2020
Download Gerber file 38
BOM(Bill of materials)
PCBWay Donate 10% cost To Author
Only PCB
PCB+Assembly
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Under the
Attribution-ShareAlike (CC BY-SA)
License.
