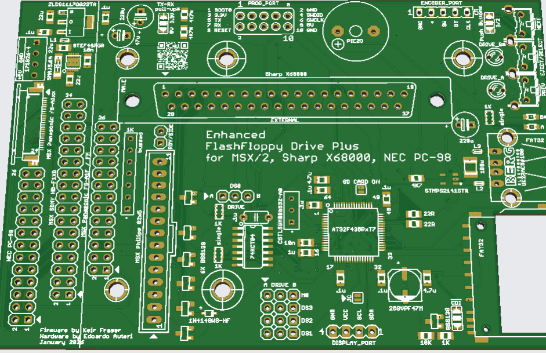

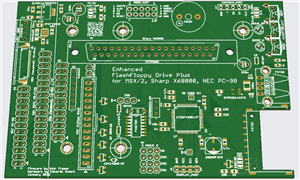

Enhanced Flash Floppy Drive Plus for Japanese computers gotek
Enhanced Flash Floppy Drive Plus
FEATURES
· Complete support of DD/HD images with AT32F435RxT7 and STM32F105RBT (STM32 requires additional logics).
· Power-fail-safe and ESD/EMI-protected input, SD card (hot plug) and USB-A connectors.
· Connectors for OLED/LCD and encoder/trackball.
· The internal version is fully compatible with 3D-printed enclosures and brackets, it fits any model.
· Optional MMC/SD slot.
· Prev/Next/Select-Eject-Insert long-shaft buttons.
· The motor signal and second drive are available.
· Improved silkscreen, programming port, minimized BOM list.
· Hardware mistakes from the original "Gotek" fixed.
· Supports a loud magnetic or capacitive piezo.
· Special version for Japanese machines such as MSX, MSX2/+, Sharp X68000, etcetera
ACKNOWLEDGEMENT
· Flash Floppy is the firmware developed by Keir Fraser and available at https://github.com/keirf/flashfloppy .
· Keir Fraser has contributed to the design of the schematic.
DISCLAIMER
· Gerber and Centroid files, BOM list are subject to change without notice.
· The project is tested with the latest firmware (stable) version available at the time of writing.

Enhanced Flash Floppy Drive Plus for Japanese computers gotek
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
