Enhanced Flash Floppy Drive Plus (internal) with thumb wheel encoder gotek shugart IBM Amiga Atari Amstrad Yamaha goex

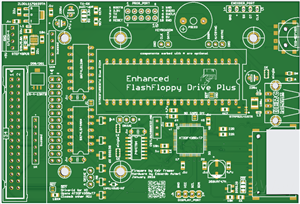

Enhanced Flash Floppy Drive Plus
Improved Gotek for Commodore Amiga (internal and external), Atari, Amstrad, Yamaha, etc.

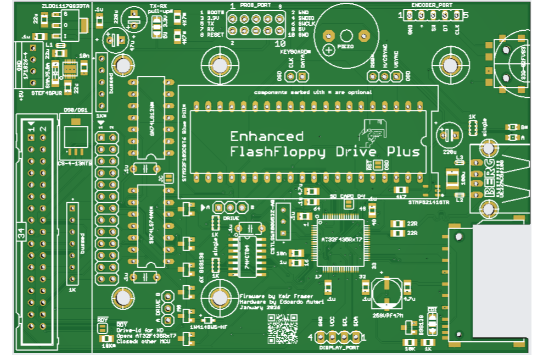

FEATURES
· Complete support of DD/HD images with AT32F435RxT7 and STM32F105RBT (STM32 requires additional logics).
· Power-fail-safe and ESD/EMI-protected input, SD card (hot plug) and USB-A connectors.
· Connectors for OLED/LCD, STM32 blue pill board (OSD) and encoder/trackball.
· The internal version is fully compatible with 3D-printed enclosures and brackets, it fits any model.
· Optional MMC/SD slot.
· Prev/Next/Select-Eject-Insert long-shaft buttons or low-profile thumbwheel encoder with an integrated switch (thumbwheel layout is optional).
· The motor signal and second drive are available.
· Improved silkscreen, programming port, minimized BOM list.
· Hardware mistakes from the original "Gotek" fixed.
· Supports a loud magnetic or capacitive piezo.
· Optional 26-pin connector with solder jumpers to ensure broad compatibility with Amstrad, Yamaha, etc.
ACKNOWLEDGEMENT
· Flash Floppy is the firmware developed by Keir Fraser and available at https://github.com/keirf/flashfloppy .
· Keir Fraser has contributed to the design of the schematic.
DISCLAIMER
· Gerber and Centroid files, Assembly drawings, and the BOM list are subject to change without notice.
· The project is tested with the latest firmware (stable) version available at the time of writing.
Enhanced Flash Floppy Drive Plus (internal) with thumb wheel encoder gotek shugart IBM Amiga Atari Amstrad Yamaha goex
*PCBWay community is a shared platform and we are not responsible for any design issues.
