lmr sdr v1.4.jpeg

Description

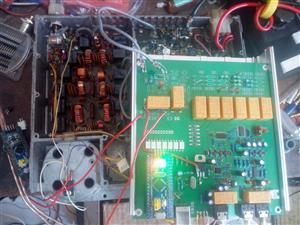

LMR SDR Transceiver 10-160 meter band V1.4

DIY SDR HF Transceiver v1.4 with STM32F103C8T6 without Linear Amplifier

with the addition of a transverter can transmit at a frequency of 144mhz

using software Powersdr v28.0.187 Windows 10 64bit

LO using Si5351A which is controlled by STM32F103C8T6 produces a frequency that is wide enough Max 160Mhz, of course allows us to make Exciter up to 10M band. LO = work freq x 4.

My BPF takes from the us5ncj design using an already-built Inductor, so it is practical without the need to roll.

https://www.ye3cif.com/diy-sdr-hf-transceiver/

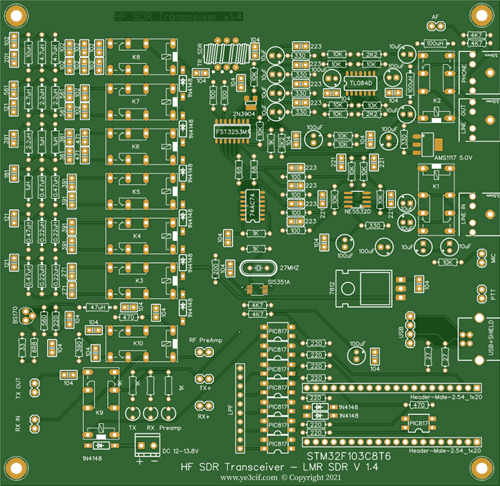

Schematic and Layout

Schematic & Manual

https://www.ye3cif.com/diy-sdr-hf-transceiver/

Sep 09,2021

6,610 views

LMR SDR Transceiver 10-160 meter band V1.4

DIY SDR HF Transceiver v1.4 with STM32F103C8T6

6610

9

0

10.00 (2)

Published: Sep 09,2021

PCBWay Donate 10% cost To Author

File Last Updated: 2024/10/25 (GMT+8)

File update record

2024-10-2512:03:55

Parts List (BOM) is updated.

*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.

Copy this HTML into your page to embed a link to order this shared project

Copy

Under the Attribution-NonCommercial-ShareAlike (CC BY-NC-SA) License.

ESP32-S3 4.3inch Capacitive Touch Display Development Board, 800×480, 5-point Touch, 32-bit LX7 Dual-core Processor

BUY NOW

MHP50-B5 Mini Hot Plate Preheater

BUY NOW

Smart Soldering Iron TS101-BC2

BUY NOW

Topic

DIY Electronics

si5351 diy sdr radio stm32f103c8t6 ssb radio sdr transceiver powersdr
