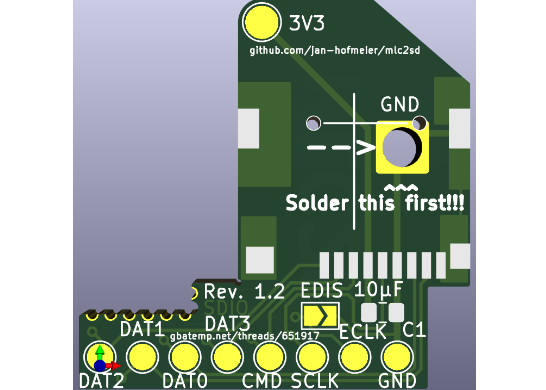

MLC2SD - A Wii U eMMC replacement
ATTENTION make sure to order with castellated holes and a thickness of 0.6mm or 0.8mm
This can be used to replace the eMMC (MLC) on a Wii U with a micro SD card. This becomes useful if the eMMC is failing (160-0103 error) or if you want to upgrade the internal storage.
For more detaails and instructions see: https://gbatemp.net/threads/how-to-upgrading-rebuilding-wii-u-internal-memory-mlc.636309/
