Components
|
|

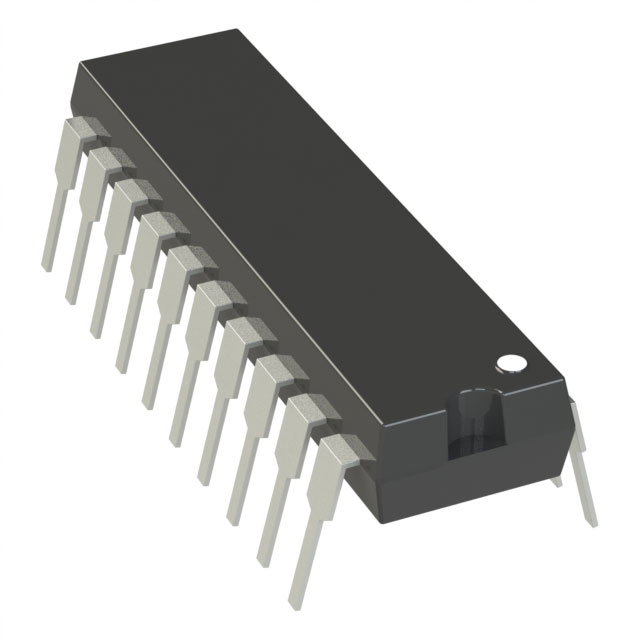

27C512-100ST Microelectronics
|
x 1 | |
|

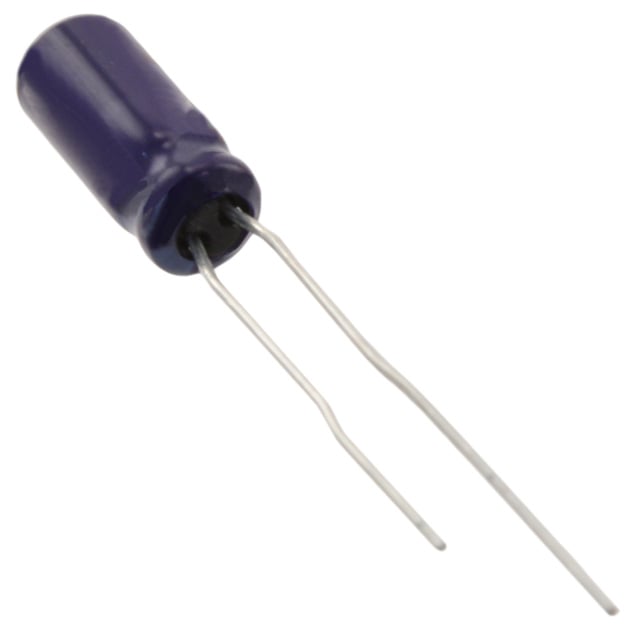

ECA-1JM100IPanasonic Electronic Components
|
x 1 | |
|
MF0207FTE52-10KYAGEO
|
x 1 | |
|
TLW-105-06-T-SSAMTEC INC.
|
x 2 | |
|
TLW-103-06-T-SSamtec Inc.
|
x 1 |
Tools, APP Software Used etc.
|
Altium DesignerAltium Designer
|
|
|
|
TL866II Plus ProgrammerXgecu
|
Description
MSX 2x32K Cartridge Board
Simple to use MSX 2x32K Cartridge Board, 100% compatible with original hardware.
Materials needed:
IC1: 27C512 or 27C256 DIP28 Eeprom memory
C1: 1uF 16V Electrolytic Capacitor
R1: 10K 1/4W Axial Resistor
JP1: 3-pin-Header
A, B, A+B: 2-pin-Header
How to make a 2-in-1 32K Cartridge:
-Divide the 32K ROMs in 2 blocks of 16K and swap the blocks to obtain a swapped 32K file.
-Join the 2 swapped 32K ROMs into a 64K file and burn it on the 27C512 EEPROM memory.
-Include C1, R1, and use JP1 to select between ROM1 and ROM2.
-One of 3 (A, B, or A+B) must be closed.
How to make a single 32K Cartridge:
-Divide the 32K ROMs in 2 blocks of 16K and swap the blocks to obtain a swapped 32K file and burn it on the 27C512 EEPROM memory. (27C256 may be used instead of 27C512).
-Include C1.
-Close the first two pins of JP1.
-One of 3 (A, B, or A+B) must be closed.
---
Check my other shared projects:
Aug 27,2024
629 views
end-flag
MSX 2x32K Cartridge Board
Simple to use MSX 2x32K Cartridge Board, 100% compatible with original hardware.
629
2
4
Published: Aug 27,2024
BOM(Bill of materials)
PCBWay Donate 10% cost To Author
File Last Updated: 2025/02/17 (GMT+8)
File update record
2025-02-1722:04:51
Gerber file is updated.
2024-09-2021:05:20
Gerber file is updated.
2024-08-2917:12:36
Parts List (BOM) is updated.
Only PCB
PCB+Assembly
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Under the
Attribution-ShareAlike (CC BY-SA)
License.
Raspberry Pi 5 7 Inch Touch Screen IPS 1024x600 HD LCD HDMI-compatible Display for RPI 4B 3B+ OPI 5 AIDA64 PC Secondary Screen（Without Speaker）
BUY NOW
ESP32-S3 4.3inch Capacitive Touch Display Development Board, 800×480, 5-point Touch, 32-bit LX7 Dual-core Processor
BUY NOW
Raspberry Pi 5 7 Inch Touch Screen IPS 1024x600 HD LCD HDMI-compatible Display for RPI 4B 3B+ OPI 5 AIDA64 PC Secondary Screen（Without Speaker）
BUY NOW
- Comments(4)
- Likes(2)
More by Dave C
-
SOIC8 to DIP8 Socket Adapter
Useful SOIC8 to DIP8 Socket Adapter.Recommended thickness: 1.2mm.
-
PCB Base for Trophy with Blinking Leds
Base for 10cm tall PCB trophy with blinking LEDs and customizable area. A good low-cost idea for a l...
-
PCB Trophy with Blinking Leds
10cm tall PCB trophy with blinking LEDs and customizable area. A good low-cost idea for a little awa...
-
Genesis/Mega Drive 4Mb Cartridge Board
Genesis/Mega Drive 4Mb Cartridge BoardSimple to use Sega Genesis/Mega Drive 4Mb Cartridge Board, 100...
-
Atari 2600 16x4K Cartridge Board
Simple to use Atari 2600 16x4K Multi-Cartridge Board, 100% compatible with original hardware.Materia...
-
Master System 32K Cartridge Board
Simple to use Sega Master System 32K Cartridge Board, 100% compatible with original hardware.Materia...
-
MSX 2x32K Cartridge Board
Simple to use MSX 2x32K Cartridge Board, 100% compatible with original hardware.Materials needed:IC1...
-
ColecoVision 32K Cartridge Board
Simple to use ColecoVision 32K Cartridge Board, 100% compatible with original hardware.Materials nee...
-
MSX Multimapper 512K Cartridge Board
This is the PCB published by RBSC, chek out their github site for details:https://github.com/RBSC/Mu...
-
Master System Multimapper 512K Cartridge Board
Simple to use MSX Multimapper 512K Cartridge Board, 100% compatible with original hardware.Use the J...
-
Prototype Breadboard with Power Supply Lines
30-line prototype breadboard with power supply and 3.5mm mounting holes.
-
TQFP44 to DIL44 Socket Adapter
Useful TQFP44 to DIL44 Socket Adapter. Developed for integrated circuits like ATMEGA324 or the MMC3.
-
General Purpose Perforated Breadboard
This is a very simple but extremely handy 76mmx70mm perf board. Standard 0.1" spacing with 2.6mm hol...
-
Master System to Mega Drive Cartridge Adaptor
This board allows you to play Master System games on your Mega Drive.R1: 10KR2, R3, R4: ShortR5, R6:...
-
SOIC8 to DIP8 Socket Adapter
Useful SOIC8 to DIP8 Socket Adapter.Recommended thickness: 1.2mm.
-
PCB Base for Trophy with Blinking Leds
Base for 10cm tall PCB trophy with blinking LEDs and customizable area. A good low-cost idea for a l...
-
PCB Trophy with Blinking Leds
10cm tall PCB trophy with blinking LEDs and customizable area. A good low-cost idea for a little awa...
-
Genesis/Mega Drive 4Mb Cartridge Board
Genesis/Mega Drive 4Mb Cartridge BoardSimple to use Sega Genesis/Mega Drive 4Mb Cartridge Board, 100...
-
Atari 2600 16x4K Cartridge Board
Simple to use Atari 2600 16x4K Multi-Cartridge Board, 100% compatible with original hardware.Materia...
-
Master System 32K Cartridge Board
Simple to use Sega Master System 32K Cartridge Board, 100% compatible with original hardware.Materia...
-
MSX 2x32K Cartridge Board
Simple to use MSX 2x32K Cartridge Board, 100% compatible with original hardware.Materials needed:IC1...
-
ColecoVision 32K Cartridge Board
Simple to use ColecoVision 32K Cartridge Board, 100% compatible with original hardware.Materials nee...
-
MSX Multimapper 512K Cartridge Board
This is the PCB published by RBSC, chek out their github site for details:https://github.com/RBSC/Mu...
-
Master System Multimapper 512K Cartridge Board
Simple to use MSX Multimapper 512K Cartridge Board, 100% compatible with original hardware.Use the J...
-
Prototype Breadboard with Power Supply Lines
30-line prototype breadboard with power supply and 3.5mm mounting holes.
-
TQFP44 to DIL44 Socket Adapter
Useful TQFP44 to DIL44 Socket Adapter. Developed for integrated circuits like ATMEGA324 or the MMC3.
You may also like
-
-
-
Modifying a Hotplate to a Reflow Solder Station
695 1 5 -
MPL3115A2 Barometric Pressure, Altitude, and Temperature Sensor
376 0 1 -
-
-
V2 Commodore AMIGA USB-C Power Sink Delivery High Efficiency Supply Triple Output 5V ±12V OLED display ATARI compatible shark 100W
902 4 2 -
How to measure weight with Load Cell and HX711
616 0 3
Hi Paolo! Sorry for the late response. I've just tested this board and works just fine.
Your board is ok, but you need to close A+B and also the first 2 pins of JP1, since JP1 is used to choose between the first 32K and the last 32K of the 27C512.
Also, I recommend a simple hex editor to swap your rom files, i use HxD. Nothing against Swaprom software, but with HxD you have better understand of what you are doing.
For example, for 32K Galaga, simply copy the content from address 0000 to 3FFF, and paste it from 4000 to 7FFF, and vice versa.
I tested this on my MSX1 argentinean clone Talent DPC-200, wich is based on the corean versión from Daewoo.
Aditionally, I'm not very pleased with the footprint I used for the IC, the holes are too small and makes not easy to insert the 27C512, sorry for that. I will upload a 2.0 version with bigger holes for better insertion.
