Micro led strip 2835 of 12 volts
Use this strip to have its intensity controlled with an RF control
So you can find the arduino code to program and use an RF control
Here you can see the complete tutorial

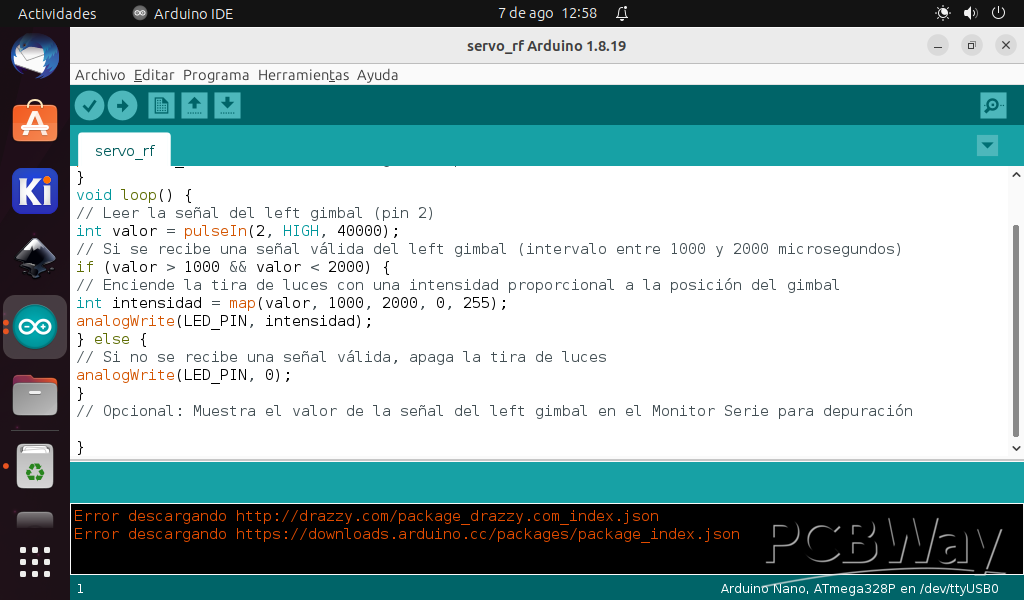

Code
Captura desde 2023-08-07 12-58-26.png

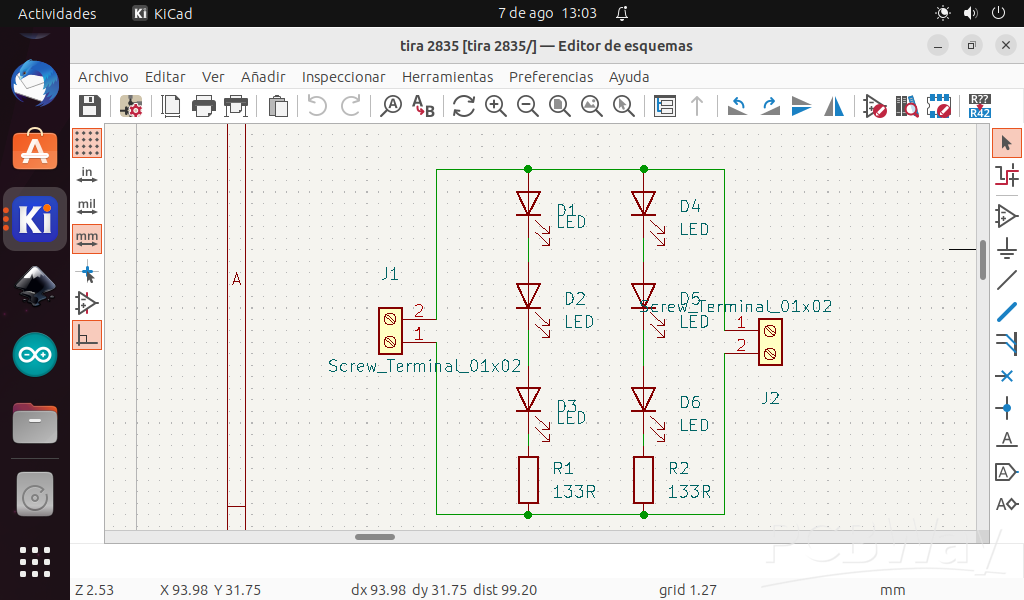

Schematic and Layout
Diagrama
Captura desde 2023-08-07 13-03-11.png
Aug 23,2023
695 views
Micro led strip 2835 of 12 volts
2 Layers PCB 15 x 50 mm FR-4, 1.6 mm, 1, HASL with lead, White Solder Mask, Black silkscreen
This is a small led strip, designed to be placed in small spaces, it uses 2835 leds that have a large lighting area.
695
2
0
Published: Aug 23,2023
Download Gerber file 3
PCBWay Donate 10% cost To Author
