Components
|
|
TF-01A |
x 1 | |
|
|
08055C104KAT2AKYOCERA AVX
|
x 1 |
Tools, APP Software Used etc.
|
KiCADKicad
|
Description

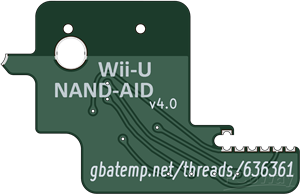

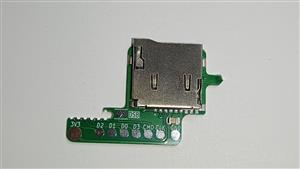

NAND-AID v4.0
This is version 4.0 of the NAND-AID, see https://github.com/V10lator/NAND-AID/releases/tag/v4.0 for KiCad and gerber files.
Difference to the release at GitHub is that VIA holes have been reduced to 2.5mm for PCBWay. Make sure it doesn't auto-select 2 mm when parsing the gerber file or things will get way more expensive!
Select a 0.6 mm thick PCB and castellated holes.
Check Using NAND-AID to repair a broken eMMC (fix 160-0103 system memory error) for more informations and support.
Feb 02,2024
543 views
NAND-AID v4.0
eMMC Recovery and Replacement Interposer
543
3
0
Published: Feb 02,2024
Download Gerber file 4
PCBWay Donate 10% cost To Author
File Last Updated: 2024/02/02 (GMT+8)
File update record
2024-02-0223:48:22
Gerber file is updated.
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Under the
Attribution-ShareAlike (CC BY-SA)
License.
