Description

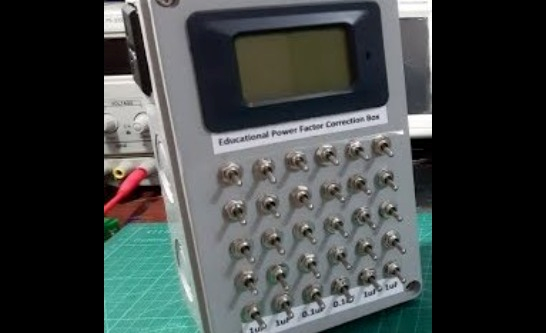

PFC Educational Capacitor bank with switches
Power Factor Correction (PFC) Educational Capacitor bank with switches
YouTube Video: https://youtu.be/Q_pC8Zi7jFo
Parts List:
400V 0.1uF capacitor (10PCS) + 400V 1uF capacitor (20PCS) (the capacitor value is optional but should be 1uF or less)
Toggle Switch (30PCS)
10A Fuse with holder
Terminal 2P (2pcs)
Apr 22,2020
1,553 views
PFC Educational Capacitor bank with switches
2 Layers PCB 100 x 100 mm FR-4, 1.6 mm, 1, HASL with lead, Black Solder Mask, White silkscreen
PFC Educational Capacitor bank with switches
1553
0
0
Published: Apr 22,2020
PCBWay Donate 10% cost To Author
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Under the
Attribution-ShareAlike (CC BY-SA)
License.
