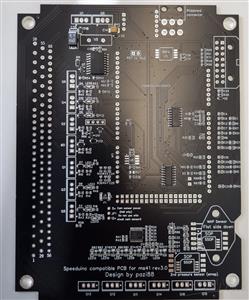

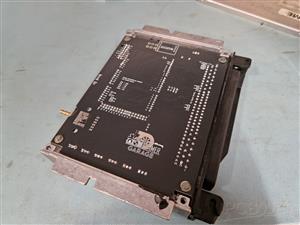

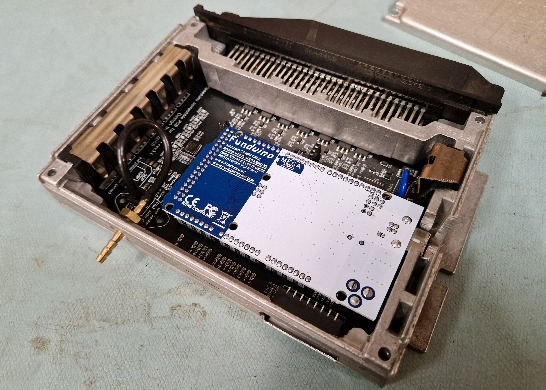

Speeduino compatible BMW M52 PnP PCB
<p>Speeduino compatible PCB meant to replace original PCB inside the BMW M52 ms41 ECU.</p><iframe class="ql-video" frameborder="0" allowfullscreen="true" src="https://www.youtube.com/embed/FzxQXtNtpvE?showinfo=0"></iframe><p><br></p>
Code
GitHub Repo for the Speeduino project
https://github.com/speeduino/speeduino
Schematic and Layout
GitHub Repo for the PCB
https://github.com/pazi88/Speeduino-M5x-PCBs/tree/master/m52_PnP
