Description

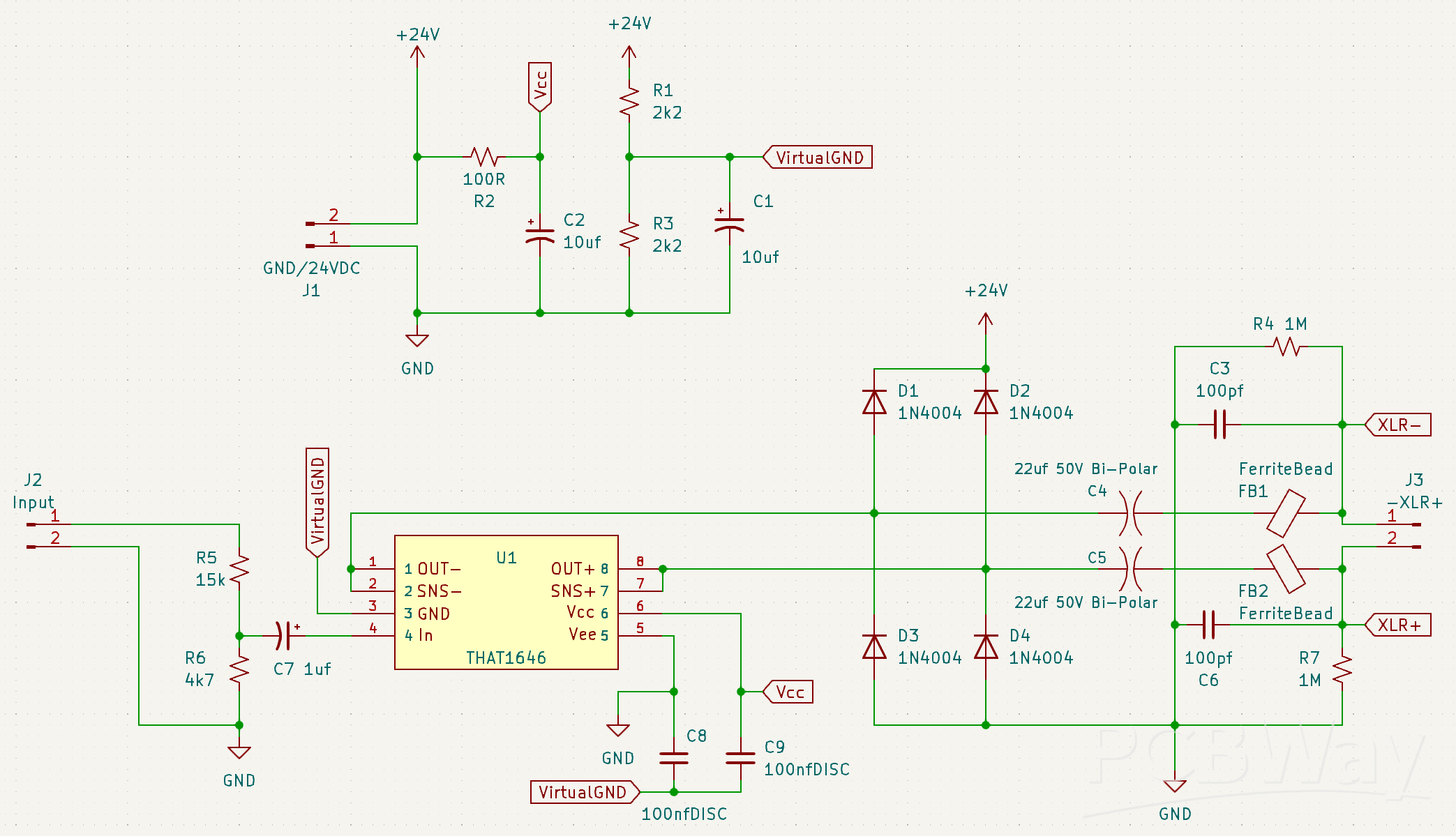

THAT1646 Balanced XLR using singled-ended power supply (20 to 30VDC)
I used this to add an XLR balanced output to my pedal-board power amp.
Interactive BOM: https://paulamps.com/boms/DI%20Add-on.html
May 12,2024
437 views
end-flag
THAT1646 Balanced XLR using singled-ended power supply (20 to 30VDC)
2 Layers PCB 26.135 x 38.835 mm FR-4, 1.6 mm, 1, HASL with lead, Black Solder Mask, White silkscreen
Tiny direct box that can be embedded in another guitar pedal ore any audio project using a single ended power suppl.
437
0
0
Published: May 12,2024
BOM(Bill of materials)
PCBWay Donate 10% cost To Author
Only PCB
PCB+Assembly
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Under the
Attribution-NonCommercial-ShareAlike (CC BY-NC-SA)
License.
