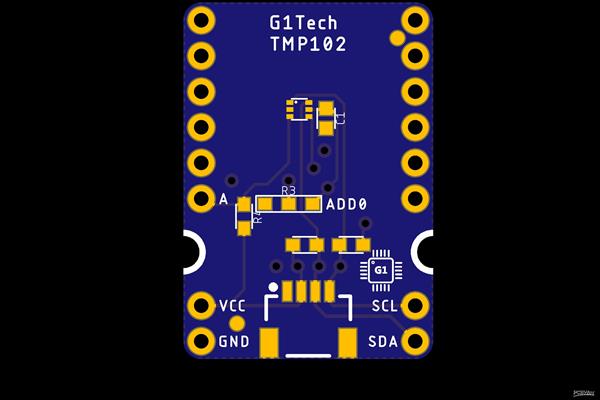

TMP102 - G1Tech Module
The TMP102 is a digital temperature sensor module that can be interfaced with a microcontroller or a single-board computer. It uses I2C communication protocol to communicate with the host device and provides accurate temperature readings with a resolution of 0.0625°C.
The module has a wide operating voltage range of 1.4V to 3.6V, which makes it suitable for use with a variety of electronic devices. It also features a low-power consumption mode, making it ideal for use in battery-powered applications.
The TMP102 has an onboard 12-bit ADC (Analog-to-Digital Converter), which provides temperature readings in degrees Celsius with a range of -55°C to +125°C. The module has a small form factor and can be easily integrated into a wide range of projects, such as environmental monitoring, industrial control, and home automation.
Overall, the TMP102 is a reliable and easy-to-use temperature sensor module that provides accurate temperature readings and is ideal for a variety of applications.
