Arduino-NANO-33 |
x 1 |
|
arduino IDEArduino
|
|
|
KiCADKicad
|
DHT Announcement & Relay Control...
TR:

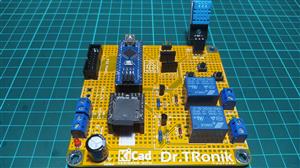

Arduino nano & DHT & 2xP10 & DFPlayer & 2xRole & ayar yapabilmek icin 3 adet buton ile:
Ortam sicaklik ve nem bilgisi 2 adet P10 Led Panele yazdirilir,
Dakikada bir sicaklik ve nem degerleri guncellenir ,
Her 5 dakikada olcülen maximum ve minimum degerler ekrana yazdirilir ve sesli anons edilir,
Ayarlanan sicaklik degerleri araliklarinda sicaklik degeri her degistiginde sicaklik degeri sesli olarak belirtilir,
Role on/off degerlerini ayarlamak üzere 3 adet buton,
Sicaklik degeri ayarlanan degerin uzerine ciktiginda 1.role ON olur altinda ise OFF duruma gecer,
Sicaklik degeri ayarlanan degerin altina indiginde 2.role ON olur altinda ise OFF duruma gecer,
Sicaklik bar ve aralik gostergeleri,

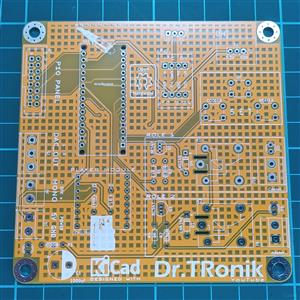

PCB uzerinde, I2C 5V ve 3.3V pinleri kart uzerinde ayri olarak belirtildiginden, I2C protoklu kullanan sensor veya lcd ekranlari da destekler...
EN:
A project that can announce temperature and humidity information
with Arduino nano, dht sensor, 2x p10 and dfplayer,
and also control 2 relays according to temperature...
DHT Announcement & Relay Control...
