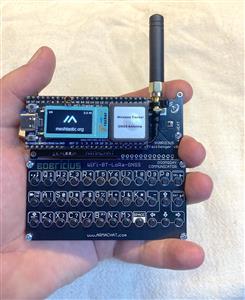

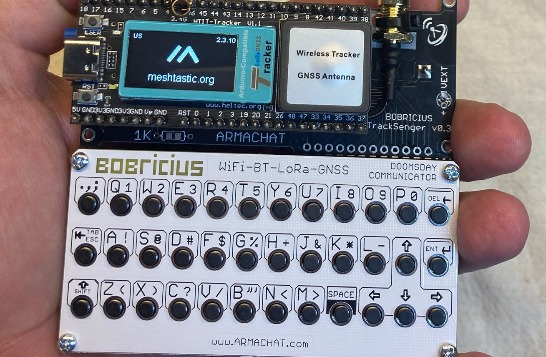

TrackSenger - Standalone - Armachat - Meshtastic WiFi-LoRa-BT-GPS
For personal use, not for resale!
Check new super simple messengers based on All in one Heltec TRACKER as main brain.
Same firmware, same simplicity as TrackSenger, just another switches now with Meshtastic support.
I am a backer and supporter of the Meshtastic project.
TrackSenger https://www.tindie.com/products/7635/
MechSenger https://www.tindie.com/products/7398/
Or older PICOmputer 28 ESP32S3 + RFM95 LoRa
Armachat https://www.tindie.com/products/3794/
Keep in mind that this is a somewhat expensive project. Before you start, calculate the costs of the necessary components such as switches, keycaps, display, and tracker.
Heltec TRACKER order link https://s.click.aliexpress.com/e/_oFbTKYO
The package includes all necessary components: battery connector, antenna with SMA, and male headers.
Bill of Materials (BOM): Required components.
firmware is ready in Meshtastic Flasher select TrackSenger

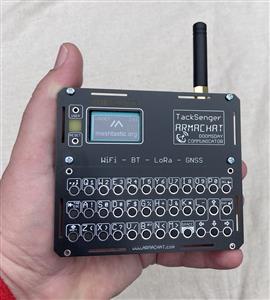

The keyboard can be cut off and connected via a 12-pin connector. There are two options for the keyboard cover. One possibility for 3d printing lovers is to enable the installation in the PCB box, but this will require a few more attempts. 18650 battery optional, there will be enough space in the box for any battery.
BOM: required components if you order bare PCB only

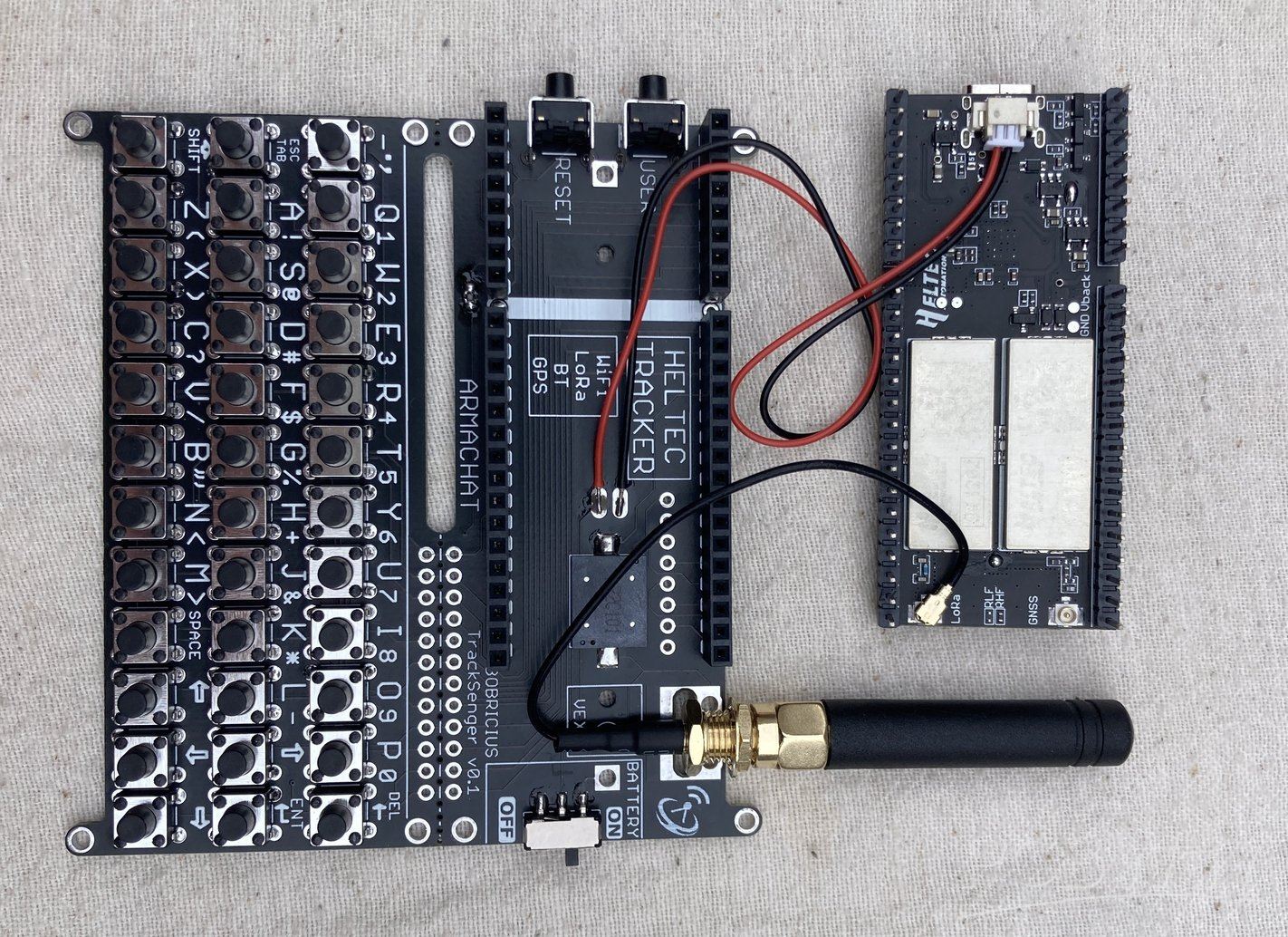

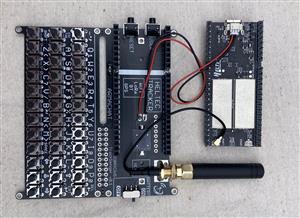

1x this magic motherboard PCB with optional covers
1x Heltec TRACKER order link package contains everything needed (battery connector, antenna with SMA, male headers)
1x piezo beeper
4x female headers
1x power switch
36 tactile switch recommended with switch force 1N 7mm height if you want use cover or smaller if you use motherboard only
2x optional side buttons to easier access to USER or RESET button
1x optional 18650 battery holder

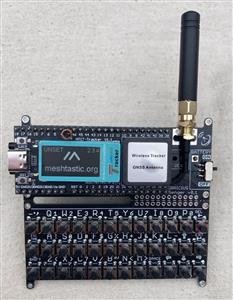

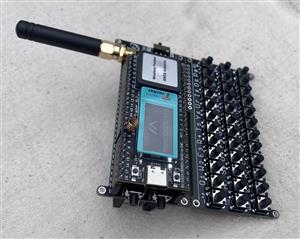

DIY Assembly
- solder switches
- solder Heltec tacker female headers to board
- upload firmware with WebFlasher
