74HC00D |
x 1 | |
|
|
74HC08D,653Nexperia
|
x 1 | |
|
|
74HC04 |
x 1 | |
|
|
74LS245 |
x 1 | |
|
|
74HC573D,653NEXPERIA
|
x 2 | |
|
|
HM628512Hitachi Semiconductor
|
x 1 | |
|
|
100nFVishay
|
x 7 |
|
KiCADKicad
|
GEORAM expansion clone for Commodore 64/128 V2.101

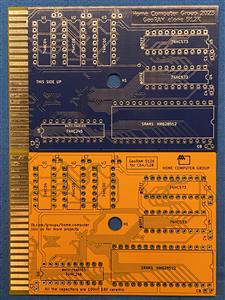

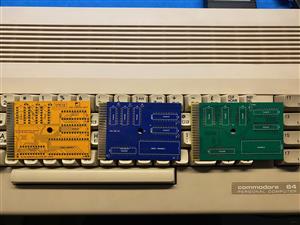

This is a PCB for a GeoRAM expansion clone for Commodore 64/128.
Description
4th RELEASE!
Version 2.101 - 02.05.2024
- The license allows commercial usage.
- Fixed minor problems on the PCB: the mounting hole is perfectly centred, Caps labels have been corrected.
‼️ If you downloaded the new Gerber Files ( 2.101 ):
- It's fine that a very small amount of copper is removed from the edge connector in the case of beveling ( I suggest 45 degree )
- A complete soldermask opening for the position of the edge connector if the correct choice.
👉 I'll upload a new version of the Gerber files as soon as possible.
3rd RELEASE
Version2.1 - 22.4.2023!
This is the release 2.1 with little improvements.
What you get is a PCB with NO SMD components, so it is easy to mount, and there is even more; the attached issue N.8 contains the description in detail of the circuitry. This project has no secrets for you.
Changes from the version 2.0:

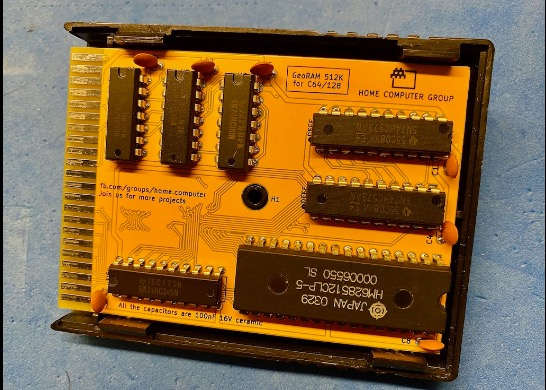

- The mounting hole has been moved to best fit the into the C64 cartridge case.
- The tracks around the mounting hole have been redesigned.
refer to the BOM for the components list.

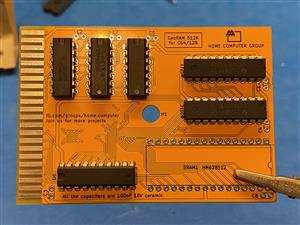

It is a card you can easily assemble by yourself, I avoided any SMD component.
Happy tinkering!
(!) The provided git repository could be not in sync. Download the attached Gerber from this website, it is always aligned with the latest production files.
Useful links:
Read more at https://fb.com/groups/home.computer
Commodore 64 programs that use the GeoRAM:
https://www.homecomputer.group/downloads/programs
GEORAM expansion clone for Commodore 64/128 V2.101
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Raspberry Pi 5 7 Inch Touch Screen IPS 1024x600 HD LCD HDMI-compatible Display for RPI 4B 3B+ OPI 5 AIDA64 PC Secondary Screen（Without Speaker）
BUY NOW
ESP32-S3 4.3inch Capacitive Touch Display Development Board, 800×480, 5-point Touch, 32-bit LX7 Dual-core Processor
BUY NOW
Raspberry Pi 5 7 Inch Touch Screen IPS 1024x600 HD LCD HDMI-compatible Display for RPI 4B 3B+ OPI 5 AIDA64 PC Secondary Screen（Without Speaker）
BUY NOW
- Comments(3)
- Likes(15)
More by Alessio - Home Computer Group
-
Modifying a Hotplate to a Reflow Solder Station
170 0 2 -
MPL3115A2 Barometric Pressure, Altitude, and Temperature Sensor
124 0 1 -
-
-
V2 Commodore AMIGA USB-C Power Sink Delivery High Efficiency Supply Triple Output 5V ±12V OLED display ATARI compatible shark 100W
371 4 1 -
How to measure weight with Load Cell and HX711
420 0 3 -
-
Instrumentation Input, high impedance with 16 bit 1MSPS ADC for SPI
530 0 0
Hola, in my understanding, few programs for the C64 can use more than 512K. Further, considering that 512K is eight times bigger than the stock RAM and that the C64 is an 8bit/1Mhz programmed in assembler language, likely, the extra RAM will be unused. I hope you enjoyed building a cartridge for your Commodore with no secrets, and that you have learned interesting things.
