DoublefetV1
Parts list is contained in the zip file, ordering first circuit boards, More updates soon.
Two twofet inverters on one circuit board synced to access 100 percent tasking of the solar panels dual input 140 VDC from two 50 percent duty cycle inverters dual 120VAC outputs good clean 60Hz power
Version 1.0 pre release work in progress.
Jul 24,2024
136 views
DoublefetV1

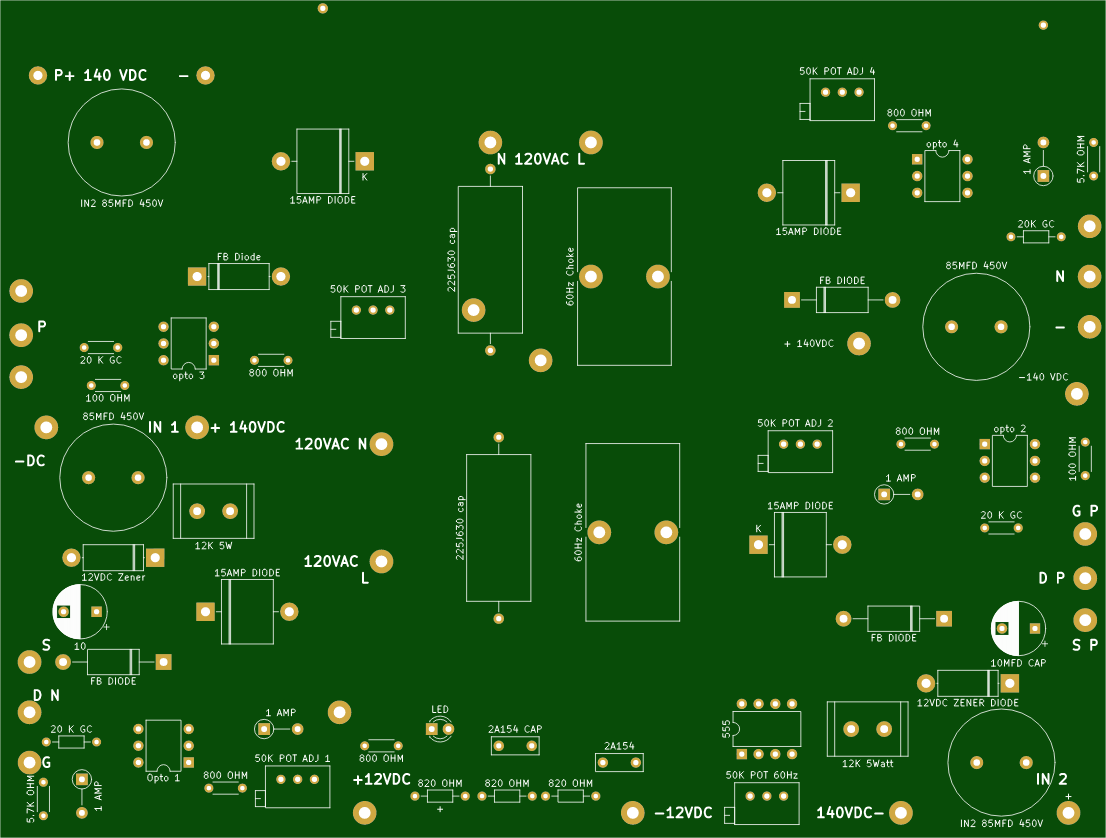

2 Layers PCB 167.64 x 127 mm FR-4, 1.6 mm, 1, HASL with lead, Green Solder Mask, White silkscreen
V1 early release dual two mosfet inverters 50 percent duty cycle running 180 degrees out of sync to access 100 percent solar input
136
1
0
Published: Jul 24,2024
Download Gerber file 3
PCBWay Donate 10% cost To Author
