Xmas Snowman (v1.0)

This a friendly Snowman which you can be hanged in your Xmas tree or whenever you like.

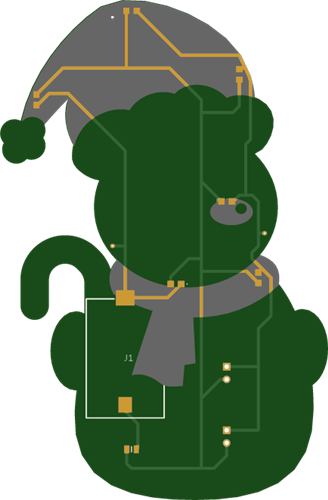

In the front of the board:

The hat, nose and scarf are transparent, so the LEDs behind it will give their colour (6x SML-A12U8TT86);
There are 2 PTH LEDs (2x WP813ID) to mimic the snowman's buttons, giving a bit of 3D feeling to the board;
The gloves and parts of the peppermint cane exposes the copper to give an extra colour to the board;

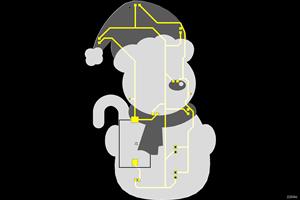

In the back of the board:

You can find the coin cell holder to give power to LEDs;

Design

I designed this board having in mind the following colours:

Silkscreen: Black;
Soldermask: White;
Copper exposed layer: Gray-ish or Golden-ish;
Transparent areas: Red;

Components

All components can be found at Mouser Electronics

---

This artistic Christmas PCB was developed for the JuliaLabs PCB Challenge 2022 - Xmas Edition

Schematic and Layout

Schematic


Download Gerbers Download BOM(Bill of materials)
