bobo146_radio_fm_kia6040

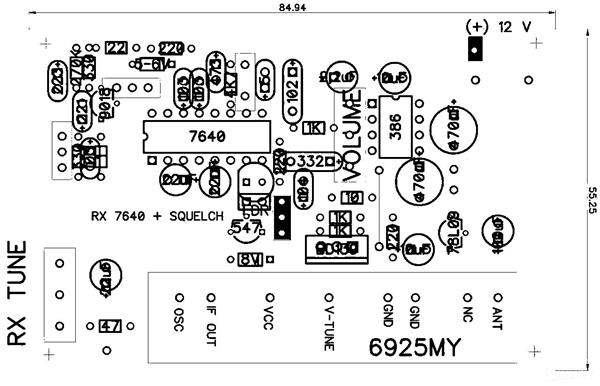

IC TA7640 bisa kita ganti dengan IC yang sama persis spesifikasinya yaitu KIA6040 buatan Korea.
Indikator Sinyal meter tidak Penulis gunakan untuk kali ini, hanya indikator LED saja yang Penulis gunakan. Kemudian untuk squelch processornya, Penulis menggunakan LDR (Light Dependent Resistor) yang bisa kita atur kepekaannya untuk fungsi pembukaan squelch. LED indikator kita letakkan berhadap-hadapan dengan LDR, sehingga terang atau redupnya LED kita gunakan untuk men-drive audio amplifier.
Mar 03,2021
4,312 views
bobo146_radio_fm_kia6040
2 Layers PCB 99 x 99 mm FR-4, 1.6 mm, 1, HASL with lead, Blue Solder Mask, White silkscreen
Radio, Fm, IC TA7640 KIA6040
4312
3
0
Published: Mar 03,2021
Download Gerber file 69
