Description

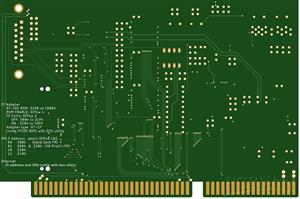

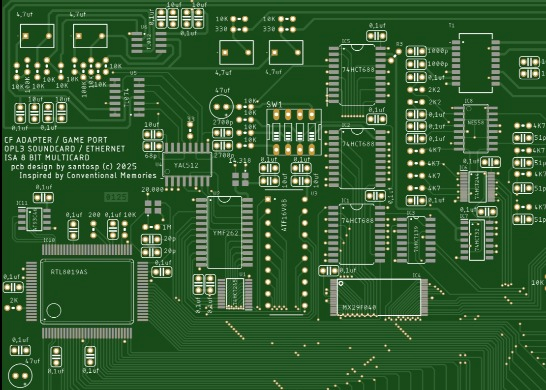

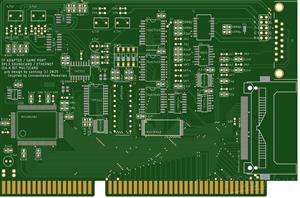

8-bit ISA Multi Card
A project inspired by the work from here, but I never assembled till now. So Ι warn you that if you finally undertake it, you do so at your own risk!!
More information you can find on the link above.
In case you order it you must do also the next options.
Layers 4
Material FR-4
Thickness 1.6 mm
Min Track/Space 5/5 mil
Min Hole Size 0.25mm
Edge Connector Yes
Beveling Yes (30°)
Surface Finish ENIG
Dec 27,2024
136 views
end-flag
8-bit ISA Multi Card
All in one sound, gaming, ethernet, compact flash ide, card in ISA form.
