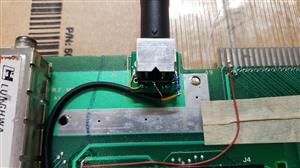

ATARI 800XL S-VIDEO port adapter
It is a replacement for the original DIN 5 connector.
It allows having an S-VIDEO port ready on the backside of 800XL.
Y pad is for luminance (brightness + sync)
C pad is for chrominance (colour)
The suggested Mini-DIN shielded connector is https://www.digikey.com/en/products/detail/te-connectivity-amp-connectors/5749181-1/1122022
Colour adjustment can be made by turning the potentiometer R38 on the motherboard.
A motherboard hack (for S-VIDEO) is required:
https://atariage.com/forums/topic/41580-quick-easy-video-upgrade-for-800xl/
Jun 12,2022
2,559 views
end-flag
ATARI 800XL S-VIDEO port adapter
A perfect form factor replacement for the DIN 5 connector.
2559
9
0
Published: Jun 12,2022
